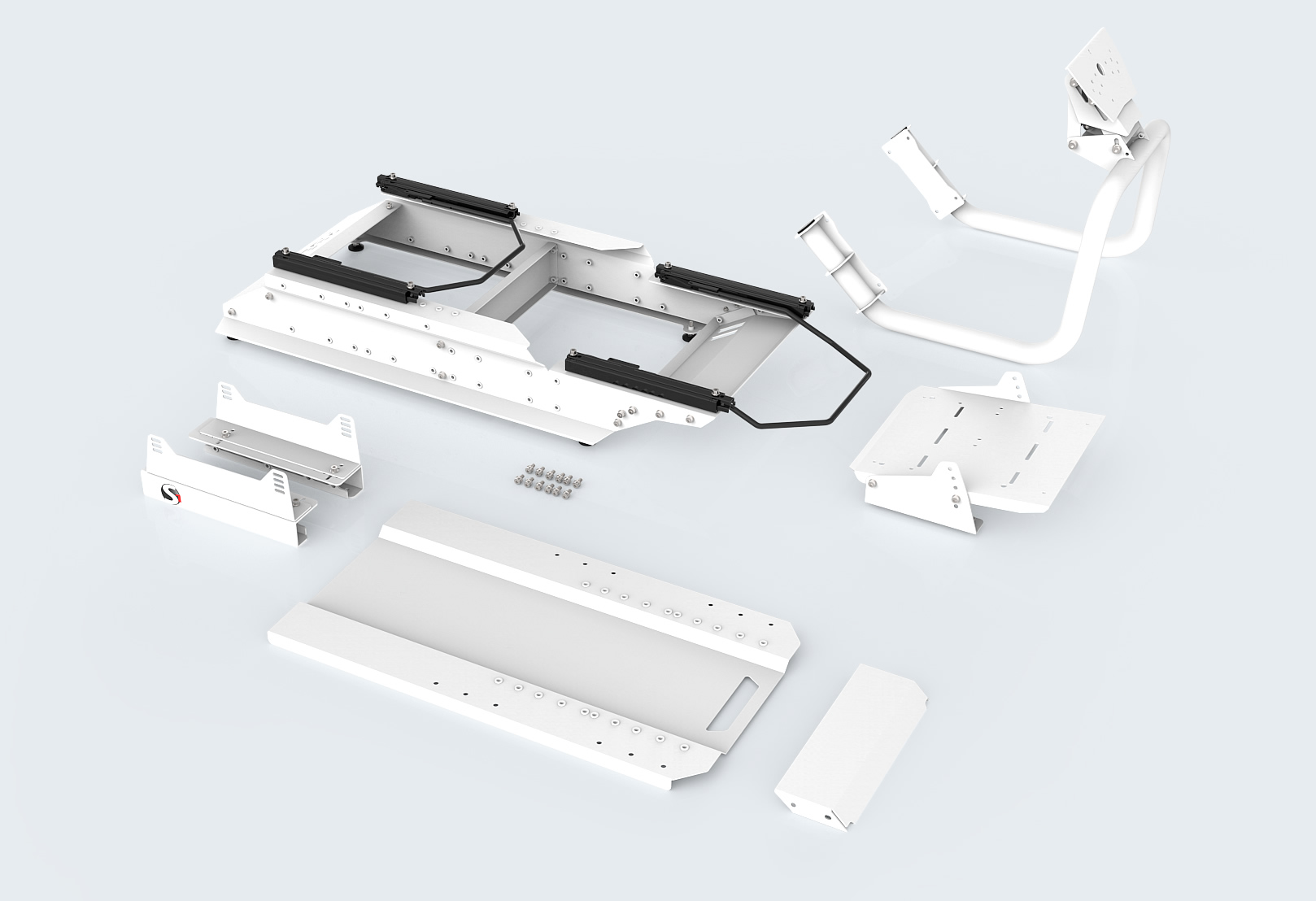

S1 Chassis body (including seat sliders and pedal plate sliders)
Seat L mounts + seat plate mount
Assembly instructions with tools and screws included
S - Seats with Side fixing
Ls - Side Fixing - 290mm /11.42 inch
Ws - External min-max width of seat side bolsters - Ws min 310mm/12.2 inch | Ws max 508mm/20inch
B - Seats with bottom fixing
L1 - 271mm /10.67 inch
L2 - 330mm /12.99 inch
W1 - 290mm/11.42 inch
W2 - 345mm/13.58 inch
|Wheels||Pedals||Shifters - Flight Stick (Need Upgrade kits)|
|Thrustmaster T-GT||Thrustmaster T-GT||Thrustmaster TH8RS /TH8A Add-On Shifter|
|Thrustmaster TS-PC Racer||Thrustmaster TS-PC Racer||Thrustmaster TSS Handbrake Sparco Mod|
|Thrustmaster TS-XW Racer||Thrustmaster TS-XW Racer||Fanatec ClubSport Shifter SQ|
|Thrustmaster T500RS||Thrustmaster T500RS (F1/GT)||Fanatec ClubSport Shifter|
|Thrustmaster T300RS||Thrustmaster T300RS||Fanatec Clubsport Handbrake|
|Thrustmaster T300RS Ferrari GTE Wheel||Thrustmaster T300RS Ferrari GTE||Logitech G920 Shifter|
|Thrustmaster T150 Force Feedback & Pro Version||Thrustmaster T150 Pedals||Logitech G29 Shifter|
|Thrustmaster T80 Racing Wheel||Thrustmaster T80||Logitech G27 Shifter|
|Thrustmaster Ferrari 458 Spider||Thrustmaster Ferrari 458 Spider||Logitech G25 Shifter|
|Thrustmaster TX Racing Wheel Ferrari 458 Italia||Thrustmaster T3PA-PRO (F1/GT)||DSD Shifter|
|Fanatec CSL Elite||Fanatec CSL Elite Pedals LC||Thrustmaster Hotas Warthog|
|Fanatec ClubSport Wheel Base V1,V2, V2.5||Thrustmaster T3PA|
|Fanatec Podium Series DD1 & DD2 (using CSL 3 hole pattern)||Thrustmaster TX Racing Wheel|
|Fanatec Porsche 911 GT2 Wheel||Fanatec ClubSport Pedals V1/V2/V3/V3 Inverted|
|Fanatec Porsche 911 GT3 RS V2 Wheel||Fanatec CSR Elite Pedals|
|Fanatec Forza Motorsport CSR Wheel||Fanatec CSR Pedals|
|Logitech G29||Logitech G29 Pedals|
|Logitech G920||Logitech G920 Pedals|
|Logitech G27||Logitech G27 Pedals|
|Logitech G25||Logitech G25 Pedals|
|SimSteering||Heusinkveld Sim Pedals Pro|
- NEW! S1 is designed to be used as flight simulator rig allowing to install Throttle and joystick (Thrustmaster HOTAS Ready, on both left and right sides) as well as pedals, speakers, buttkicker.
- NEW! Pedals with sliders for easy ajustements.
- Support PC, PS3, PS4, XBOX 360, XBOX One (check what's supported tab below).
- Applicable for users from 127cm (4’2″) up to 200cm+ (6’67″+).
- Seat carry weight up to 140kg (308 lbs).
- Seating position Rally/GT.
- Modular Frame (You can upgrade with accessories).
- Seat Sliders Included.
- Footprint dimensions: L x W x H 1500 x 630 x 1180 mm. (59” x 24.8” x 46.5”)
- All tools and screws to attach your wheel and pedals are provided.
- 2 year Warranty on all RSeat Manufactured components including chassis and seat.
- Packaging Box: L x W x H 125 x 65 x 55cm (49.2" x 25.6" x 21.6" ) Weight: 55kg (121lbs)
- 100% Made in EU: Engineered, Designed and Manufactured in Europe.
Made of Laser cut carbon steel and CNC bended round tubes.
Comes in White matte powder coat paint.
- Frame step on the ground by 4 adjustable feet (37mm diameter each).
- Casters Ready (M8 Thread)
- Wheel console made of Mandrel Bend carbon steel tubes NPS 1-1/2 (Din 48.3mm)
- Total height (with the seat): 1180 mm (46.5”)
- Total width: 630 mm (24.8”)
- Length: 1500 mm. (59”)
- Pedals plate width 364 mm. (13.62”)
- Pedals plate adjust from full flat up to 30°
- Wheel mounting plate allow to adjust height of the wheel ±120 mm (4.72”)
- Slide pedals front-backwards with sliders (rails) ±200mm (7.87inch)
- Slide The seat front-backwards with sliders (rails) ±190mm (7.48inch)
- Net weight: 48 kg (105 lbs)
- Gross weight 55 kg (121 lbs) The S1 with the packaging.
- Ready for upgrades
Accessories available in options :
BUTTKICKER UPGRADE KIT
TABLET AND BUTTONBOX UPGRADE KIT
SHIFTER/HANDBRAKE UPGRADE KIT
KEYBOARD AND MOUSE TRAY UPGRADE KIT
SPEAKERS MOUNT UPGRADE KIT
NEW! S1 FLIGHT MOUNT UPGRADE KIT
