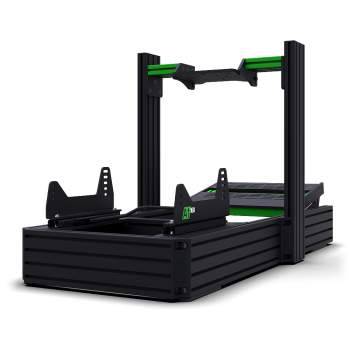

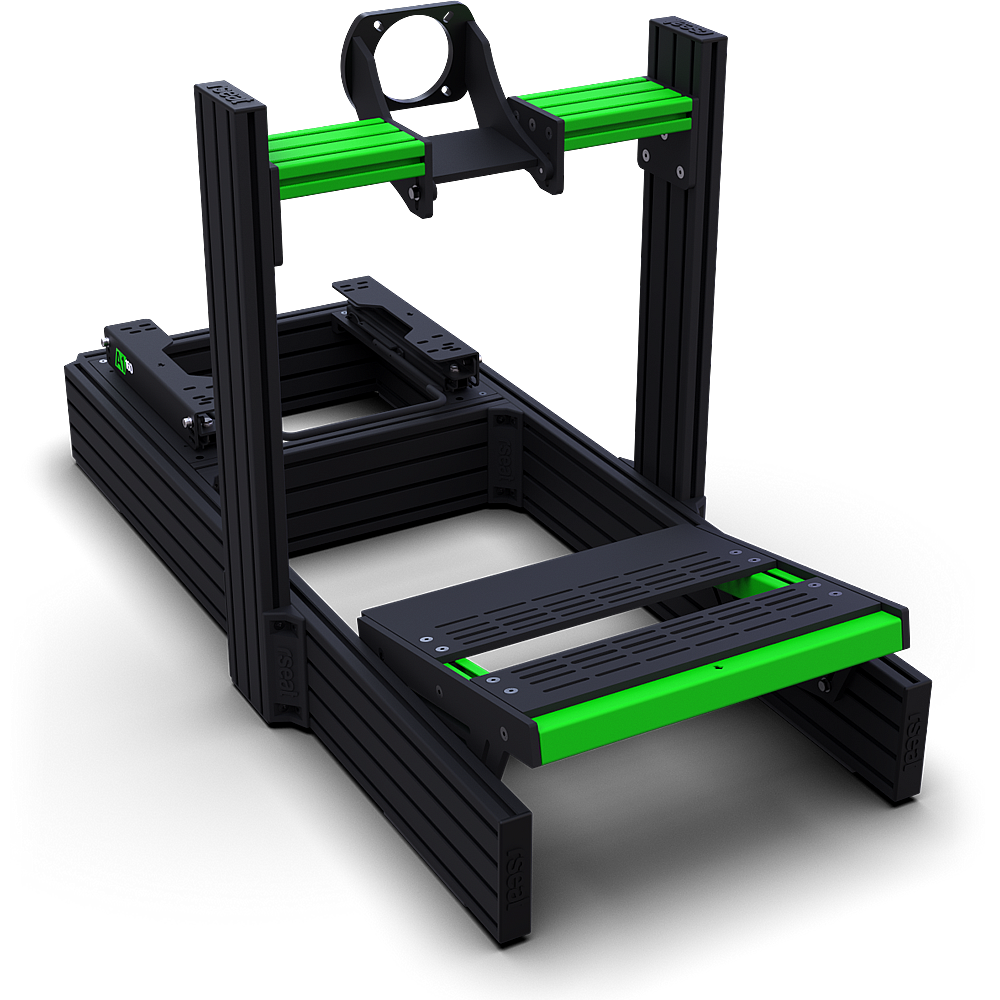

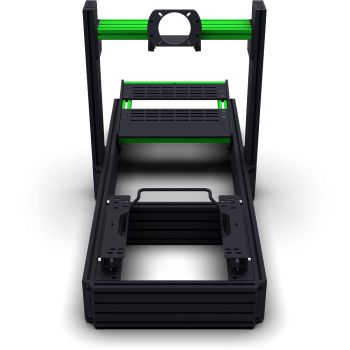

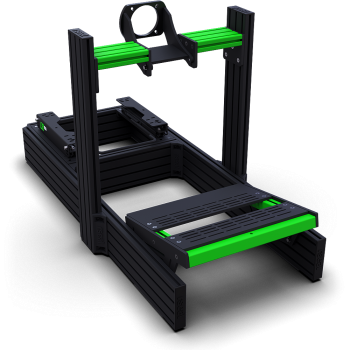

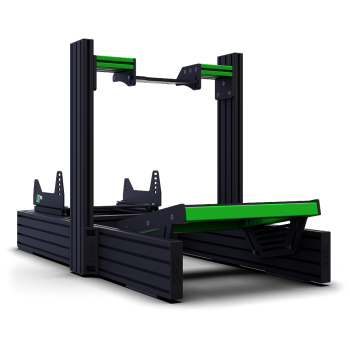

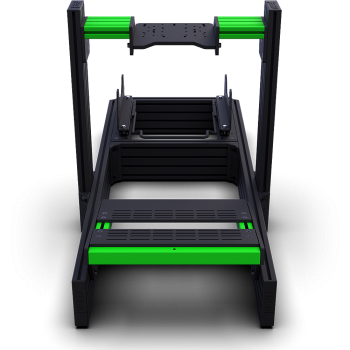

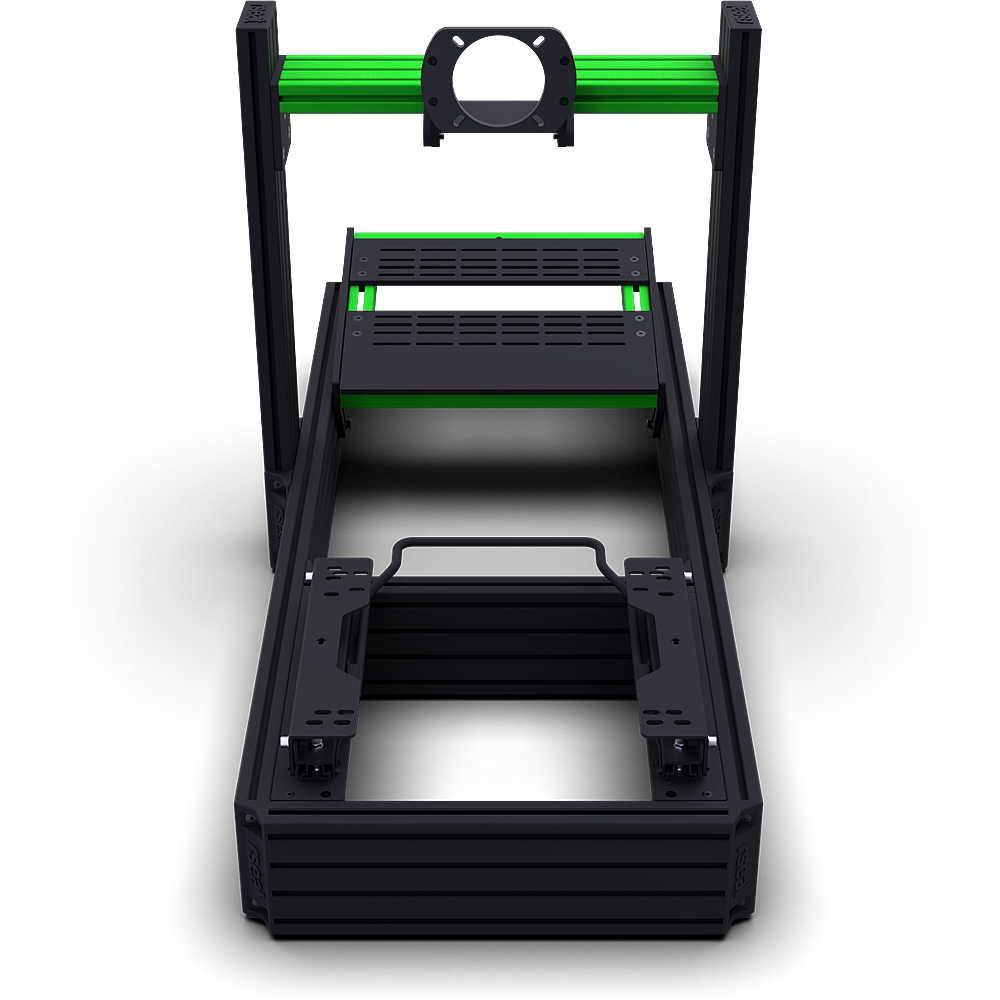

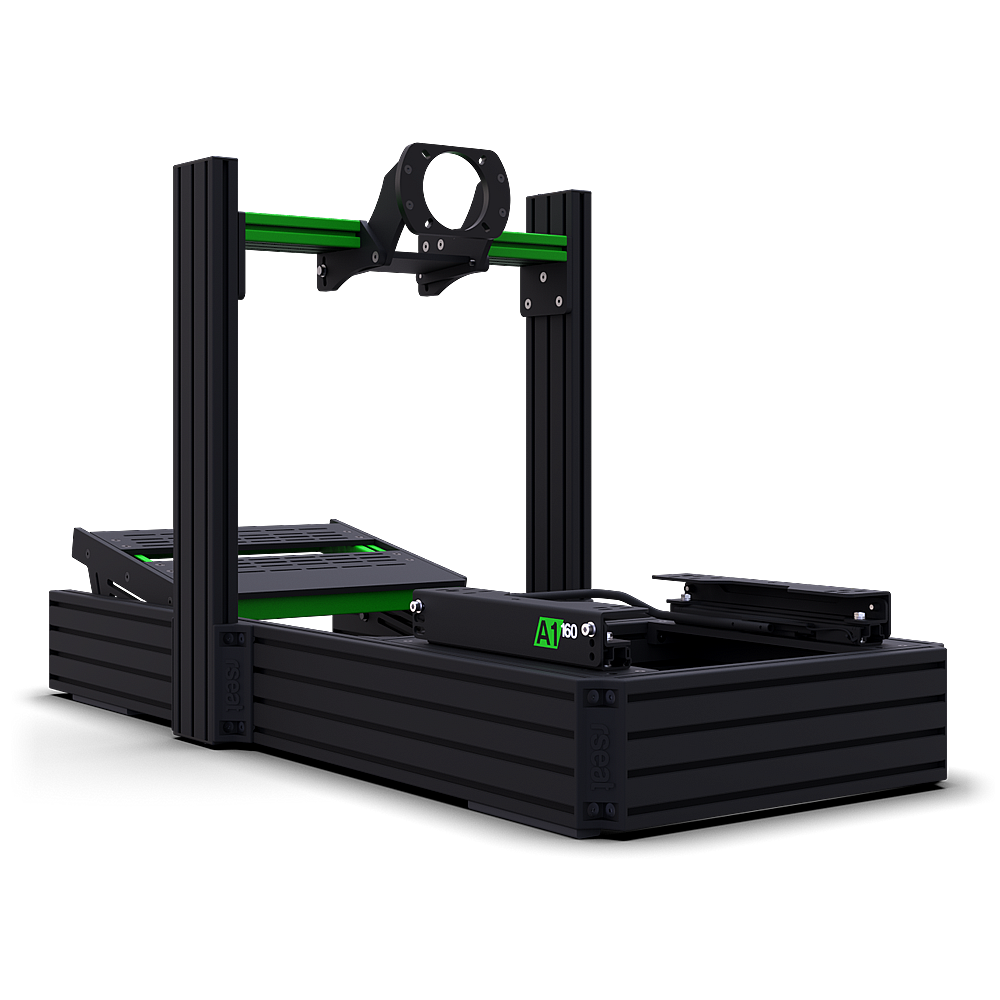

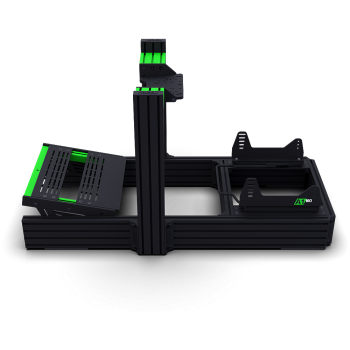

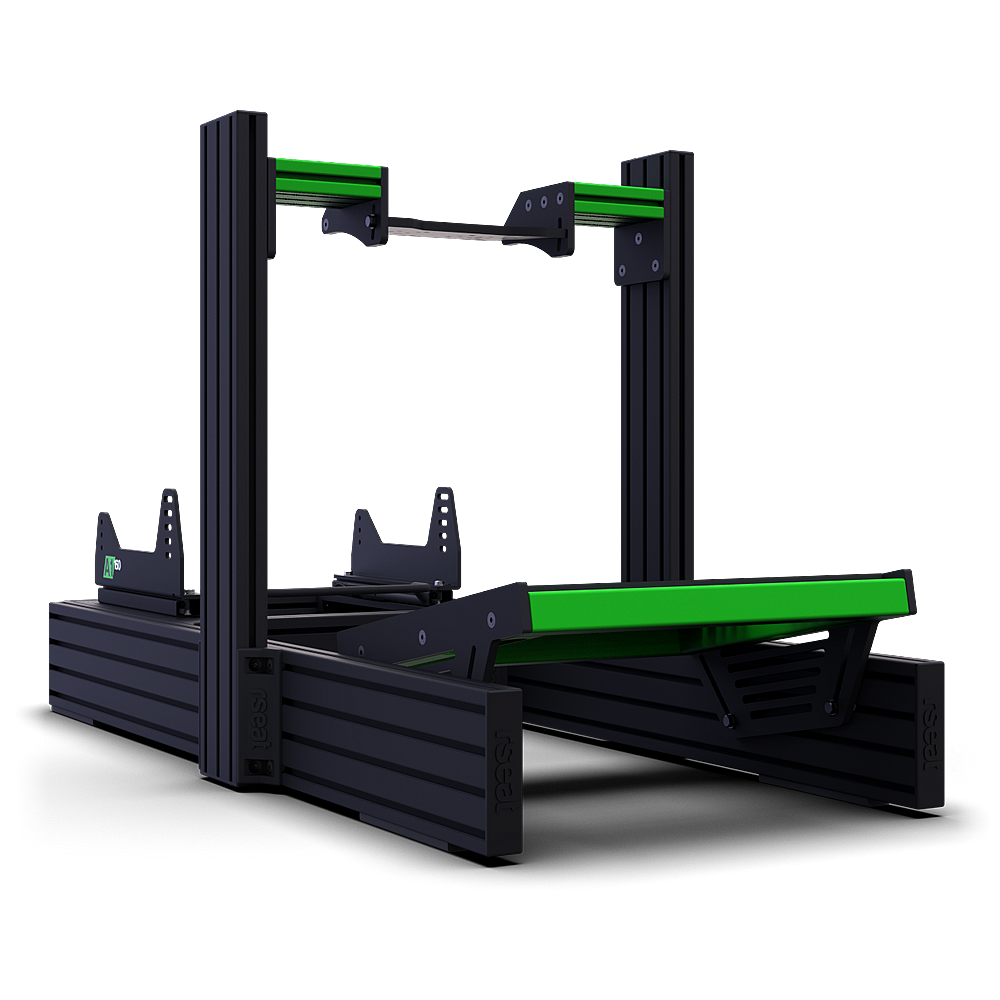

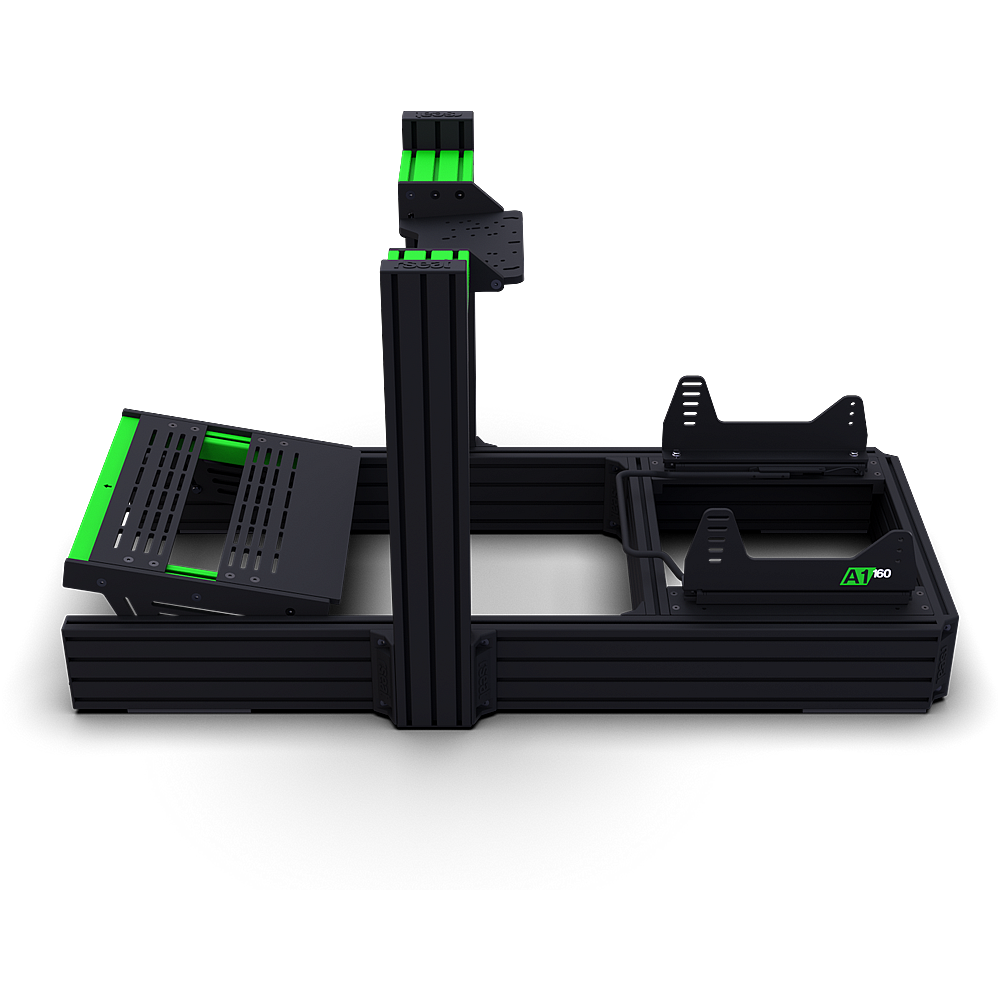

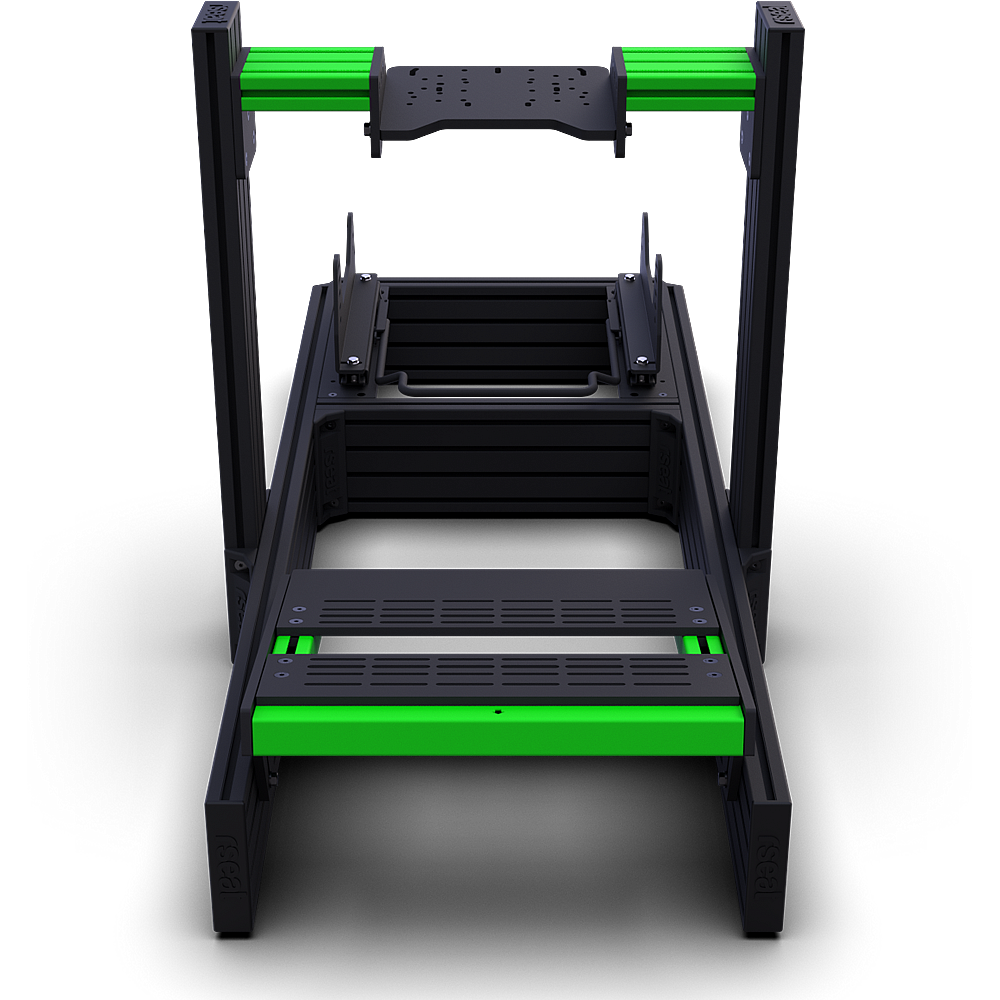

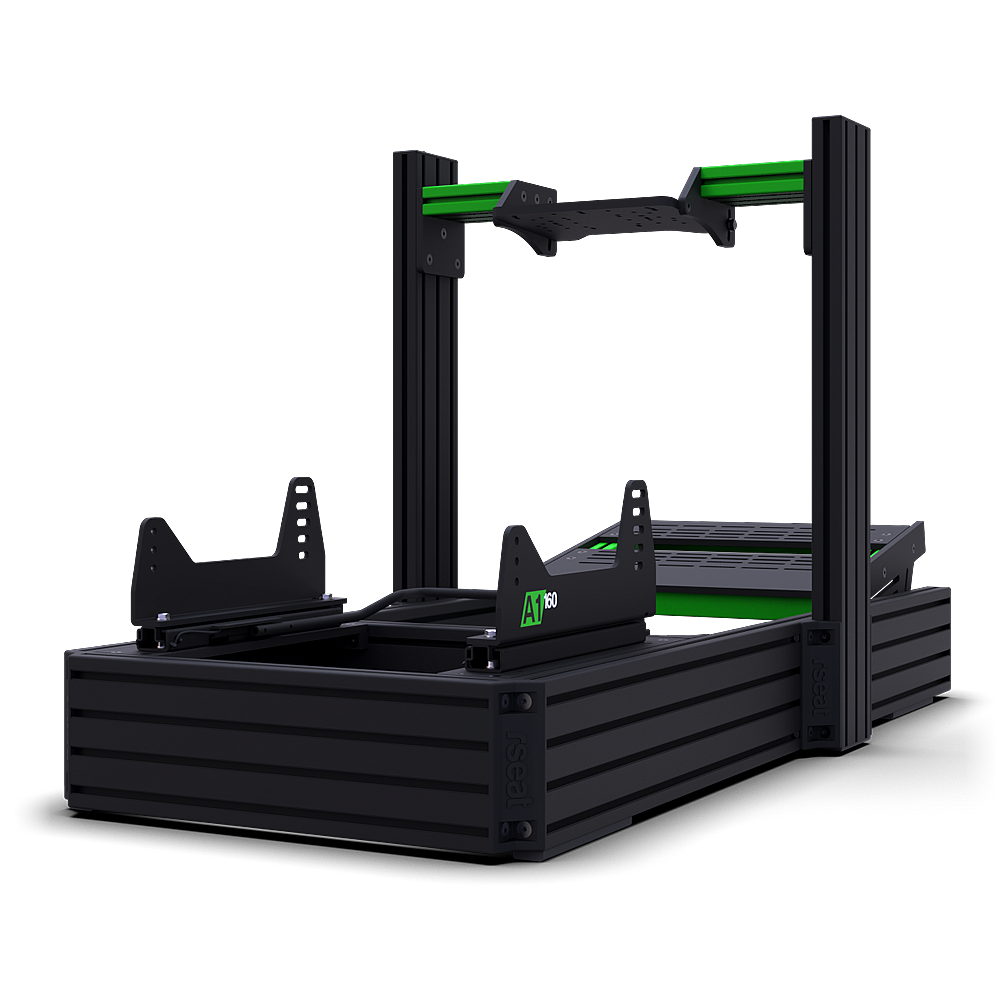

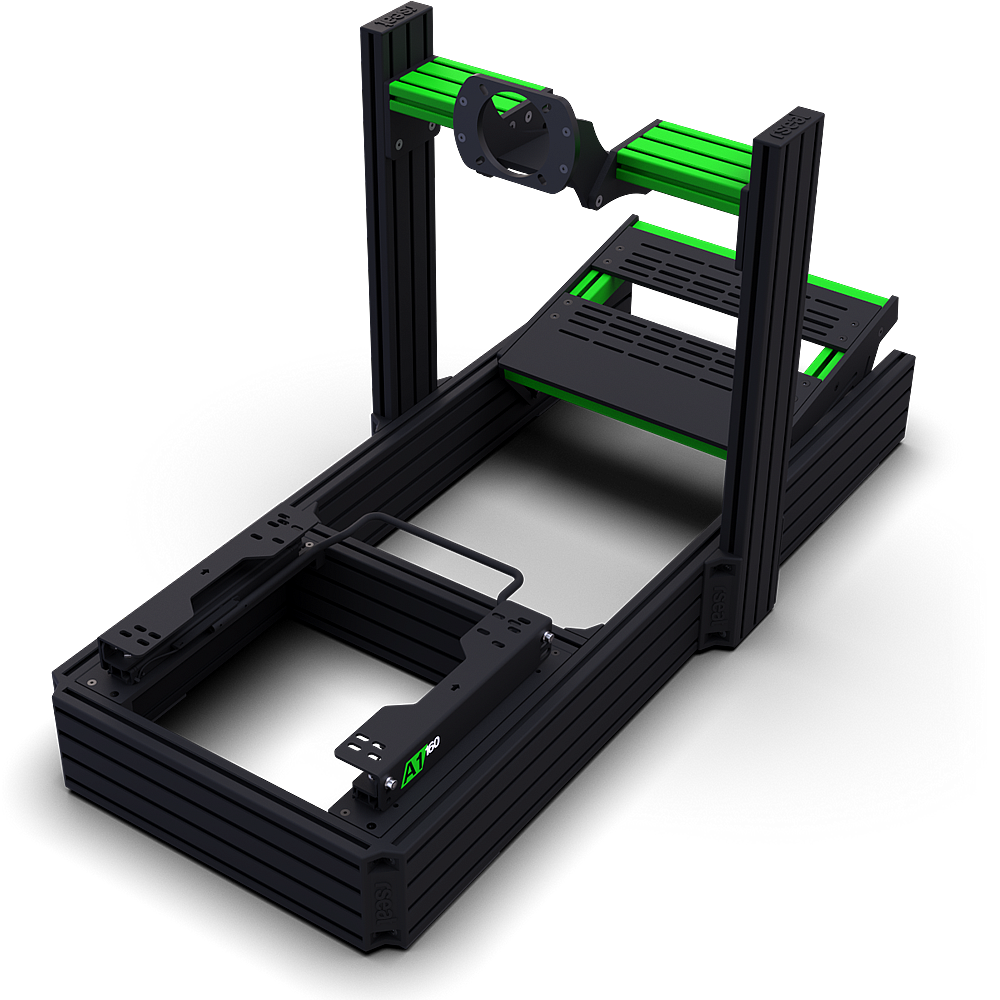

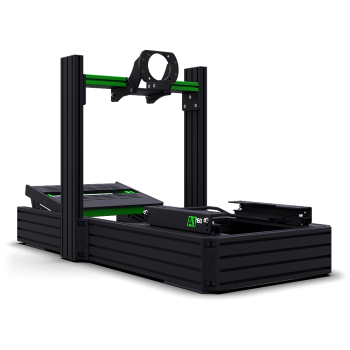

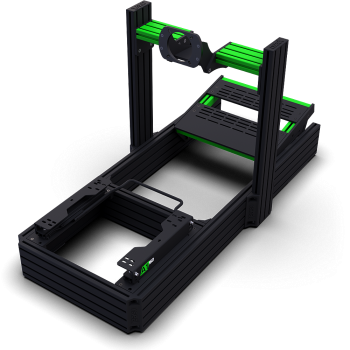

A1-160 Black/Green

To ensure optimal structural strength, the RSEAT A1 features HPDC L-Brackets for the main frame. These brackets are essential for chassis stability and adjustment and are made from high-pressure die-cast aluminium 6000 series material.
RSEAT A1 chassis feature thick wall T-Slot Aluminum Extrusion profiles. No compromises are made. The material is aluminium 6063-T6 6000 SERIES ALUMINUM.
RSEAT A1 combines unique features to provide our customers with the ultimate Sim-Racing experience. The main feature of this simulator is its outstanding chassis strength and functionality, which stems from the high-quality raw materials we use and the exceptional way in which we bond them together.
we use high-quality fasteners to ensure the stability and durability of our chassis. The key fastener used to bond the chassis together is the T-Slot nut.
A1-160 Black/Green
A1-160 Black/Green
A1-160 Black/Green
A1-160 Black/Green
A1-160 Black/Green
Pre-Order
A1-160 Black/Green
A1-160 Black/Green
A1-160 Black/Green
A1-160 Black/Green
A1-160 Black/Green




  • Ultra durable and stable construction. Support any Direct Drive wheel and professional high-end pedals. Sparco® / RSEAT seats.
  • All way adjustable chassis including wheel, pedals, seat, attachments. Seat slide front-back with sliders (included).
  • 6063-T6 6000 SERIES ALUMINUM material that boasts an exceptional surface finish and ultimate tensile strength.
  • TIGER Drylac® (Made in EU) powder coating matte fine structural finish.

A1-160 Black/Green

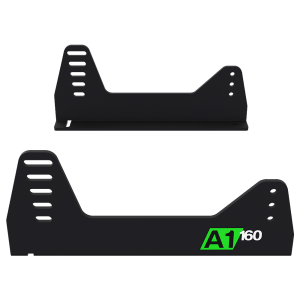

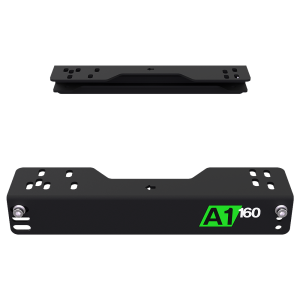

[ Frame only ]  The price does not include the bucket seat. You can choose with or without bucket seat, or choose the seat of your choice from RSeat or SPARCO in the options below. The addition to the cart will calculate the final price automaticaly. For a better overall protection, the seats are delivered directly in the box of your chassis. Non-contractual photo


  • Availability: Pre-Order
  • Model: A1-160 Black/Green
  • Box Weight: 62.00kg
  • Package: 140.00cm x 50.00cm x 30.00cm
Product Views: 2205
999.00€
Ex Tax: 832.50€

Available Options

OVERVIEW

The RSEAT A1-160 combines unique features to provide our customers with the ultimate Sim-Racing experience. The main feature of this simulator is its outstanding chassis strength and functionality, which stems from the high-quality raw materials we use and the exceptional way in which we bond them together.

To ensure optimal structural strength, the RSEAT A1-160 features HPDC L-Brackets for the main frame. These brackets are essential for chassis stability and adjustment and are made from high-pressure die-cast aluminium 6000 series material. The one-piece design with open visibility to the fasteners allows for easy installation, eliminating the need for annoying plastic caps that are used to hide the fasteners in regular L-brackets. Furthermore, the HPDC L-Brackets guarantee high strength, great surface finish, and display the RSEAT logo with pride.

The RSEAT A1-160 chassis also features thick wall 40 x 160 T-Slot Aluminum Extrusion profiles, with no compromises made. We use aluminium 6063-T6 6000 SERIES ALUMINUM material that boasts an exceptional surface finish and ultimate tensile strength. It is a common material used in extreme sport equipment, so it is perfect for our simulator. The sheet metal plates are laser-cut 6000 series aluminium that are 10mm and 12mm thick. To finish off the chassis, we use TIGER Drylac® (made in EU) powder coating matte fine structural finish. All raw materials are manufactured in the EU, ensuring the highest quality for our customers.

At RSEAT, we use high-quality fasteners to ensure the stability and durability of our chassis. The key fastener used to bond the chassis together is the T-Slot nut. The A1-160 features Roll-in T-Nut with Ball Spring - M8 thread, which can be loaded either from the profile ends or side. The nut can be easily rolled into the T-Slot, even in places where the profile ends are inaccessible, such as when installing accessories later on. The ball with a spring inside of the nut fixates it into place, and its self-aligning feature ensures that the thread will always be in the middle of the T-slot. It will not fall down the T-Slot, even if it is in a vertical position when assembling the chassis, making the assembly process easy and hassle-free.

.

A1 - 160 Specifications

  • Ultra durable and stable construction.
  • Support any Direct Drive wheel and professional pedals with load cell or hydraulic
  • Install any attachment left or right side of the chassis Including Shifter, Keyboard and mouse tray, Tablet Buttonbox mount
  • Seating position Rally/GT
  • Modular Frame (You can upgrade with accessories)
  • Seat Sliders Included.
  • Footprint dimensions: L x W 1425 x 660 mm
  • All tools and screws to attach your wheel and pedals are provided
  • 5 year Warranty on all RSeat Manufactured components.
  • Weight: 47kg
  • Recommended User Height : 120cm - 210cm+
  • Chassis Material : 6063-T6 6000 SERIES ALUMINUM
  • Painting : TIGER Drylac® (made in EU) powder coating matte fine structural finish
  • 100% Made in EU: Engineered, Designed and Manufactured in Europe.
  • Attention: Please select your seat according to your waist size. No exchange will be granted in case of wrong selection.

Accessories available in options :

Keyboard tray Upgrade kit

  • Install on the left or right side of the chassis
  • Easy Installation
  • Made of 6063-T6 6000 SERIES ALUMINUM
  • Fully Adjustable, slider mechanism with Bearing to slide left-right
  • Tray dimensions 500 mm. x 200mm
  • Assembly instruction, tools and fasteners provided
  • Mounting to chassis RSeat A1 hinge 80x40

Chassis Monitor Stand Upgrade Kit

  • Support from 27" up to 55" Ultra wide monitors
  • VESA Support 75x75, 100x100, 200x200
  • Made of 6063-T6 6000 SERIES ALUMINUM
  • Height Adjustable
  • Up/Down screen travel 370mm
  • Front/back travel 220mm
  • Assembly instruction, tools and fasteners provided

Chassis Monitor Triple Stand Upgrade Kit

  • Support from 3x27" up to 3x32" wide monitors
  • VESA Support 75x75, 100x100
  • Angle Adjustement 45°- 70°
  • Fine adjustement for ultimate position
  • Made of 6063-T6 6000 SERIES ALUMINUM
  • Up/Down screen travel 370mm
  • Front/back travel 220mm
  • Assembly instruction, tools and fasteners provided

Buttonbox Upgrade kit

  • Install on the left or right side of the chassis
  • Angle and tilt adjustable
  • Fits 5″-10.3″ tablets and all Smartphones
  • Buttonbox up to 320mm width
  • Assembly instruction, tools and fasteners provided.

Shifter Upgrade Kit

  • Install on the left or right side of the chassis
  • Made of 6063-T6 6000 SERIES ALUMINUM
  • Height, tilt and position adjustable
  • Shifter position adjustable
  • Ultra Durable construction
  • Assembly instruction, tools and fasteners provided

Keyboard tray Upgrade kit

  • Install on the left or right side of the chassis
  • Easy Installation
  • Made of 6063-T6 6000 SERIES ALUMINUM
  • Fully Adjustable, slider mechanism with Bearing to slide left-right
  • Tray dimensions 240 mm x 200mm
  • Assembly instruction, tools and fasteners provided
  • Mounting to chassis RSeat A1 hinge 80x40

Adjustable Feet

  • Easy Installation
  • Mount Type : Bottom mounting
  • Chassis Width (at mounting points) : 540 mm
  • Ultra Durable mount
  • Height Adjustement : +25mm up to +50mm
  • Assembly instruction, tools and fasteners provided.

WHEELS (Bottom Mounting)

WHEELS (Face Mounting)

PEDALS

  • Moza Racing R5, R9, R16, R21 Direct Drive
  • Fanatec Podium DD1
  • Fanatec Podium DD2
  • Fanatec CSL DD
  • Fanatec DD PRO
  • Fanatec ClubSport (all models)
  • Fanatec CSL (all models)
  • Fanatec (all other models)
  • Thrustmaster (all models)
  • Logitech (all models)
  • Leo Bodnar 50 Series
  • Simucube 2 Sport, Pro, Ultimate
  • Simagic Alpha mini, Ultimate
  • MiGe 130ST (Small, Big)
  • Lenze MCS12 Series
  • VRS DirectForce Pro
  • Moza Racing CRP, SR-P, SR-P Lite
  • Simucube Active Pedals
  • Heusinkveld Sim Pedals Pro
  • Heusinkveld Sim Pedals Ultimate
  • Heusinkveld Sim Pedals Sprint
  • Meca Cup Pedals
  • Simagic P2000 Pedals
  • Augury Pedals AP-121
  • Simworks PRO Gt Pedals
  • VRSDirectForce Pro
  • Asetek SimSports LaPrima, Forte, Invicta
  • BJ Simracing GT/F1 Hydraulic Pro Pedals
  • Fanatec ClubSport Pedals V1/V2/V3, V3i
  • Fanatec CSL Elite Pedals
  • Fanatec (all other models)
  • Thrustmaster T-LCM Pedals
  • Thrustmaster T3PA Pedals
  • Thrustmaster (all other models)
  • Logitech (all models)
  • Venym (all models) - with base plate
