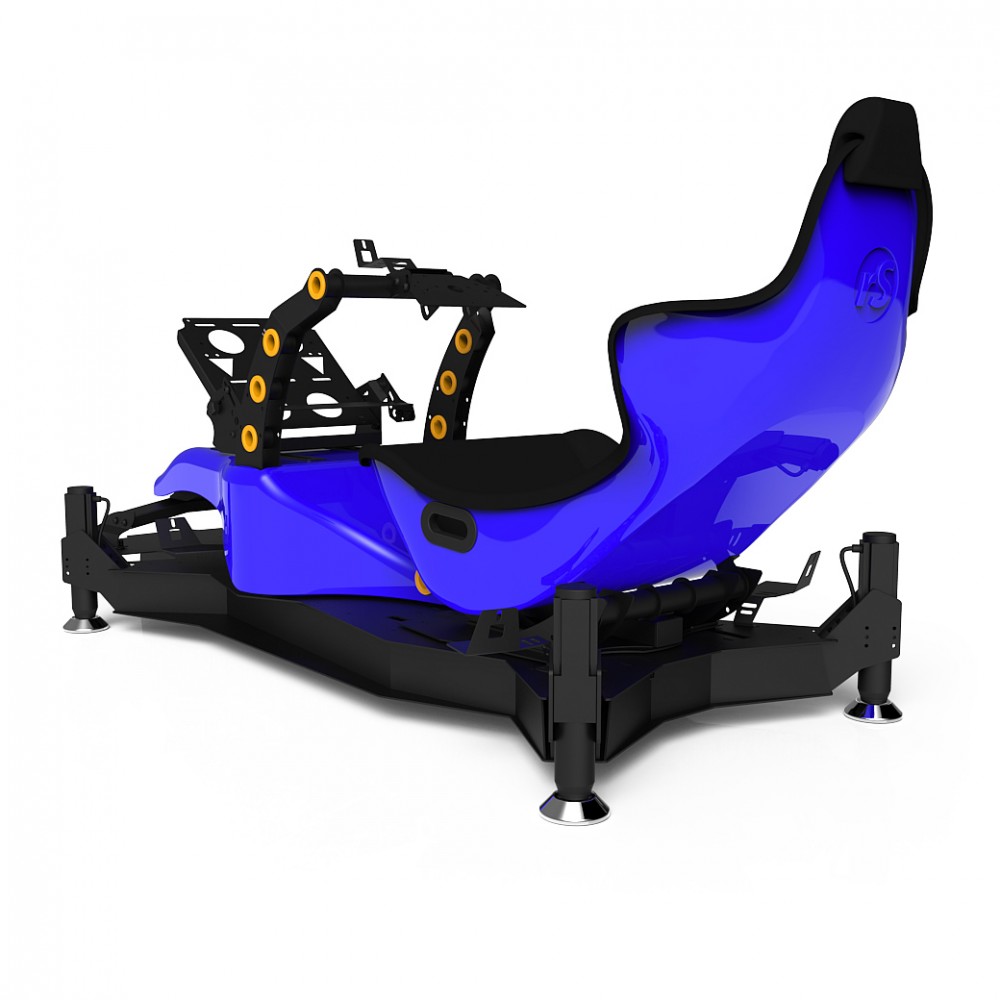

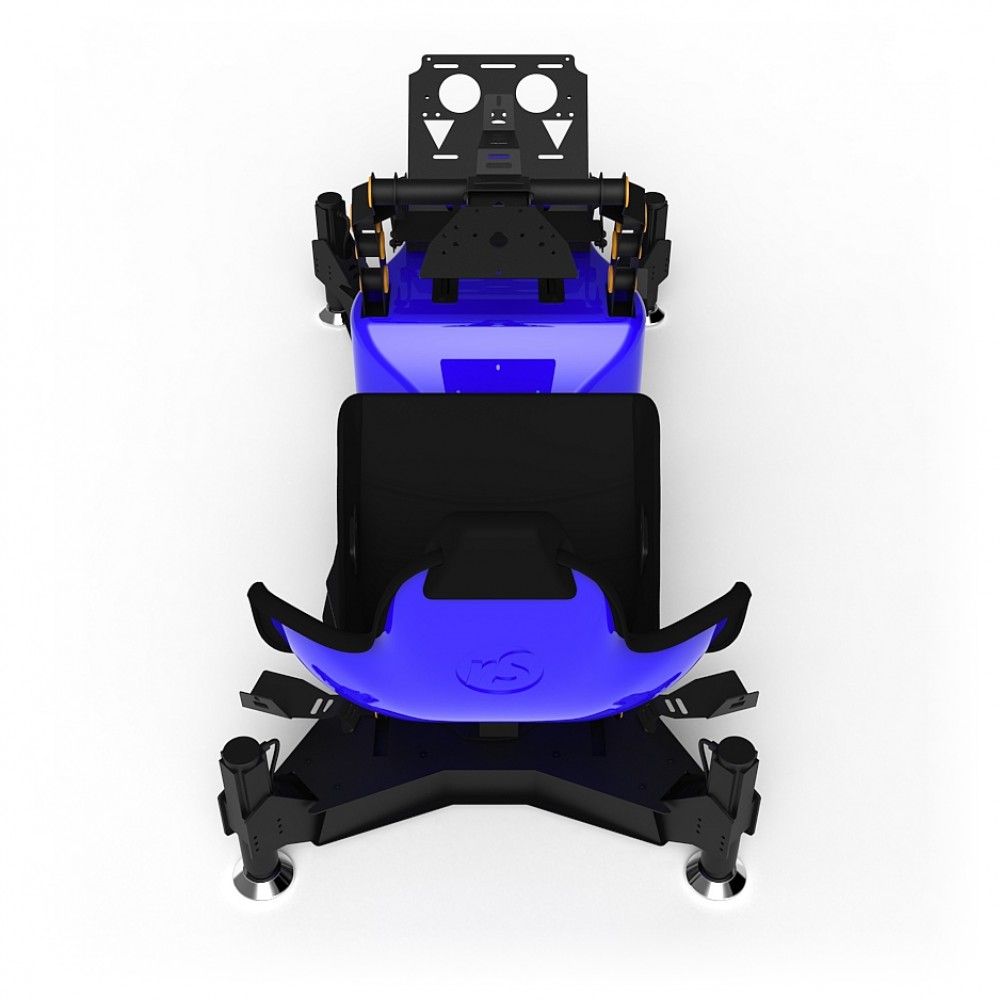

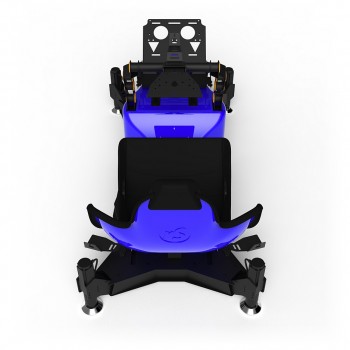

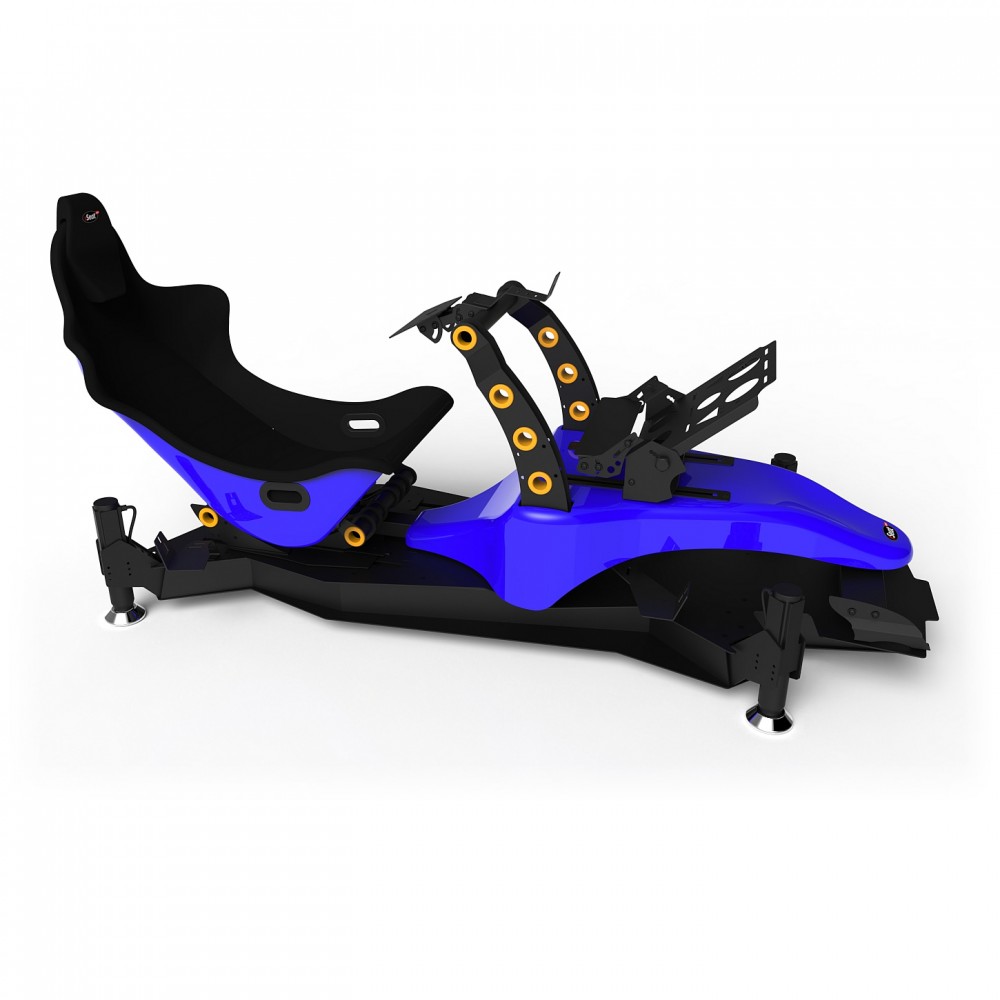

RS Formula M4A Blue Full Motion, Electrical Adjustment of the pedals and seat

Specification

• D-BOX software is Windows PC compatible only.
• Full Electrical Adjustment of the Pedals and The seat. No manual adjustment of the seat or pedals front-back.
• PLUG AND PLAY, ready to go.
• D-BOX KAI-1P USB Controller
• D-BOX ™ motion actuators kit 4250i (4 x Actuators)
• RS Formula D-BOX Adaptor Frame made of cnc laser cutted carbon steel to hold the actuators
• Chassis comes in black matte or white matte powder coat paint.
• Max Vertical lift – 35 mm.
• Max Vertical Velocity – ±100 mm./sec
• Max Vertical Acceleration – ±1g
• Frequency range – 0 to 100Hz
• Operating Temperature range – 0 to 30°C
• Operating Humidity – 10 up to 75 %
• Maximum lifting capacity (per seating area) – 1000 lb / 455 kg
• Power requirement (per ACM 120V) – 120 VAC, 60 Hz, 5 A
• Power requirement (per ACM 230V) – 230VAC 50/60Hz, 5A
• Footprint dimensions: 2000mm-2200mm x 800mm x 940mm (74.78”- 86.61” x 31.5” x 37”)
• Weight: 140kg (308lbs)
• Assembly tools and screws provided.

Hardware

• All tools and screws to attach your Wheel, pedals and shifter are provided.
• Detailed assembly instructions.

24×7 Support

• We provide 24×7 on site support through ticket or live-chat.
• Distributor network allow to have full support in your area.

Warranty

• 2 year Warranty on all Rseat Manufactured components including chassis and seat

Specification

• Support PC, PS3, XBOX
• Seating position as Formula One car
• Footprint dimensions: L/W/H 1950-2150 mm. x 620-1300 mm. x 980 mm. (75.59” – 84.64”) x (24.40”-51.18) x 38.58”
• Thrustmaster T500RS – Fanatec Porsche GT2/GT3, CSR and CSR Elite, Clubsport Wheel, Logitech G27/G25
• Thrustmaster T500RS – Fanatec clubsport V1, V2 – Logitech G27/G25, and more..
• Shifters N/A (Steering Wheel Paddle Shifters only)
• Buttkicker ™ Gamer 2, Pearl ™ THMP1, ButtKicker ™ Simulation Kit, and more..
• Logitech® Z906 5.1 Sound system (level 2 only)
• >D-BOX ™ motion actuators kit 4250i (level 2 only)
• Fully Electrical Adjustment of the Pedals and the Seat. (level 2 only)
• Made in EU.
