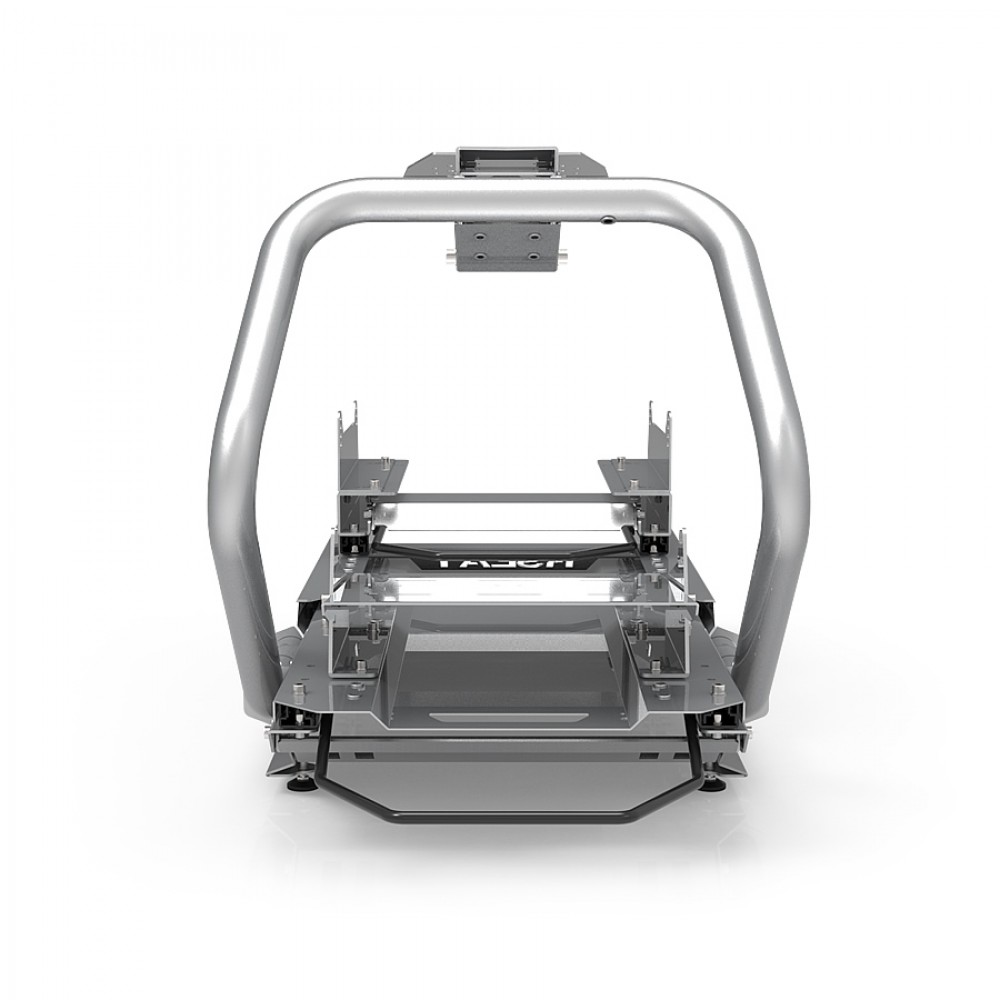

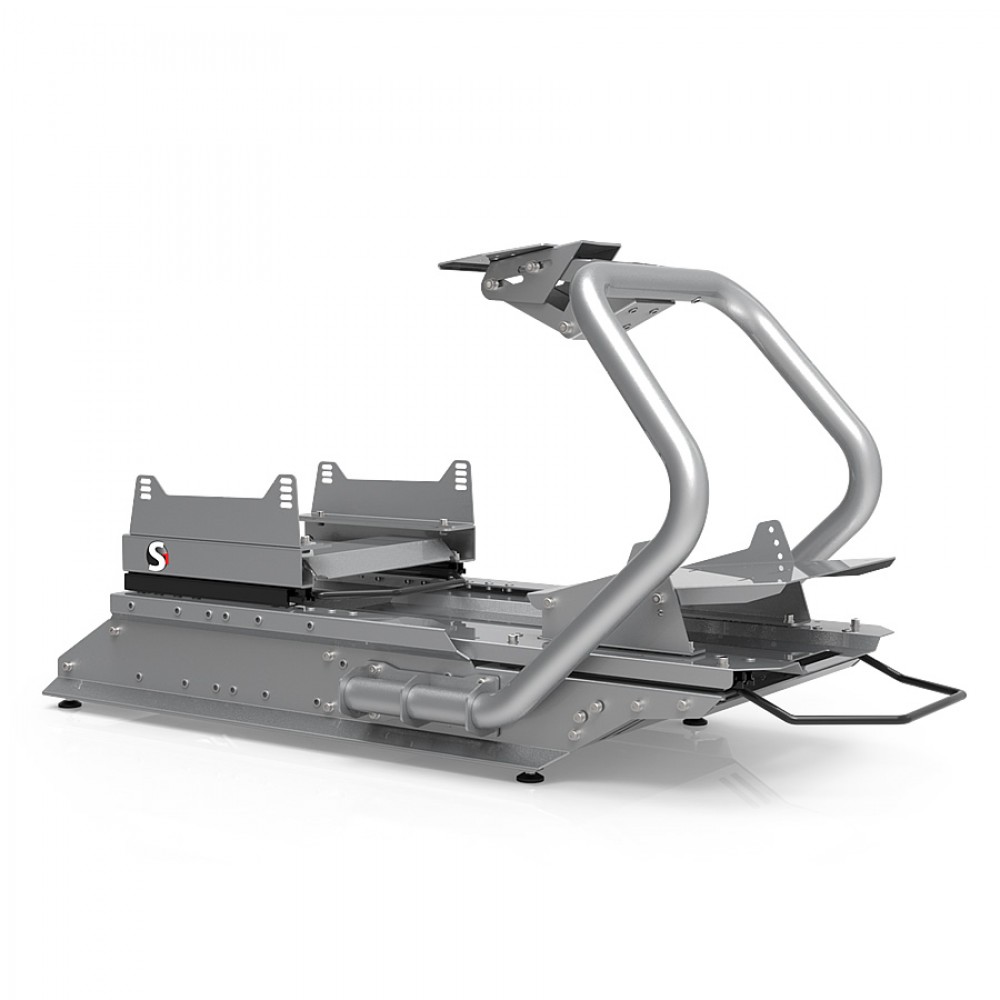

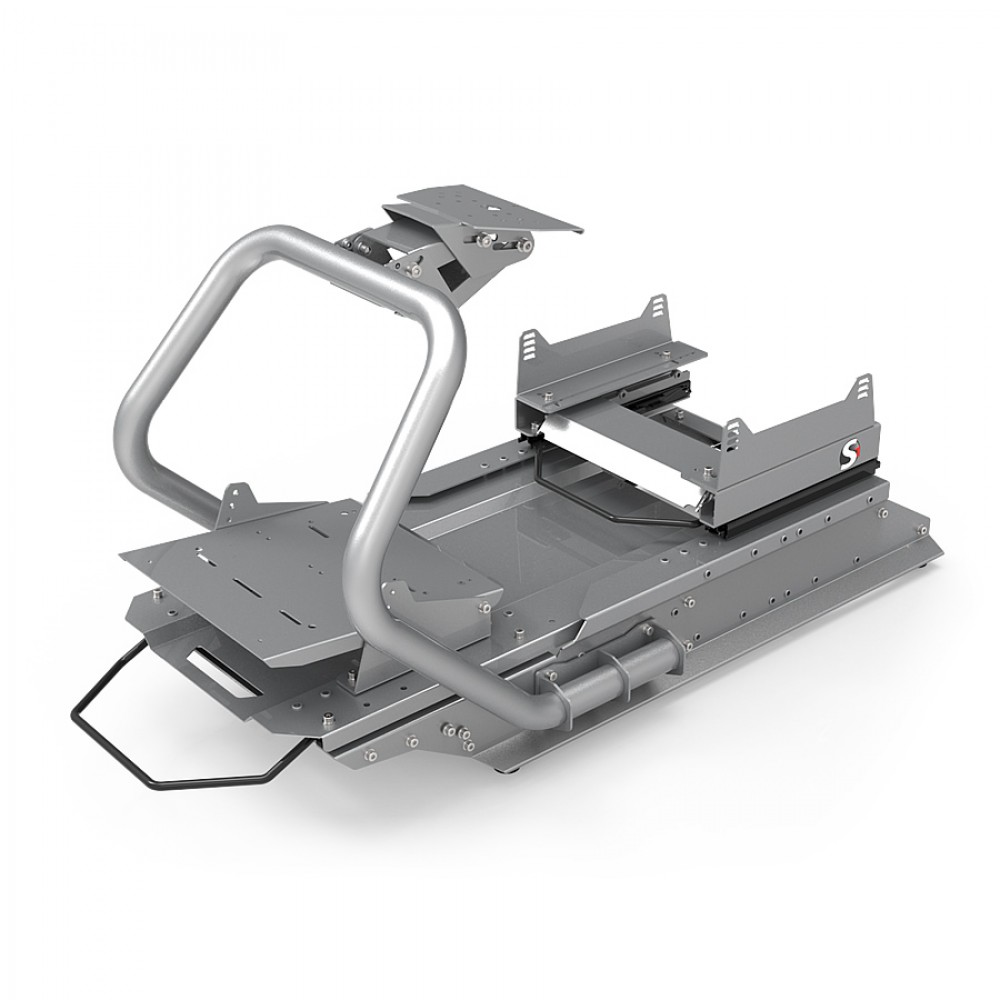

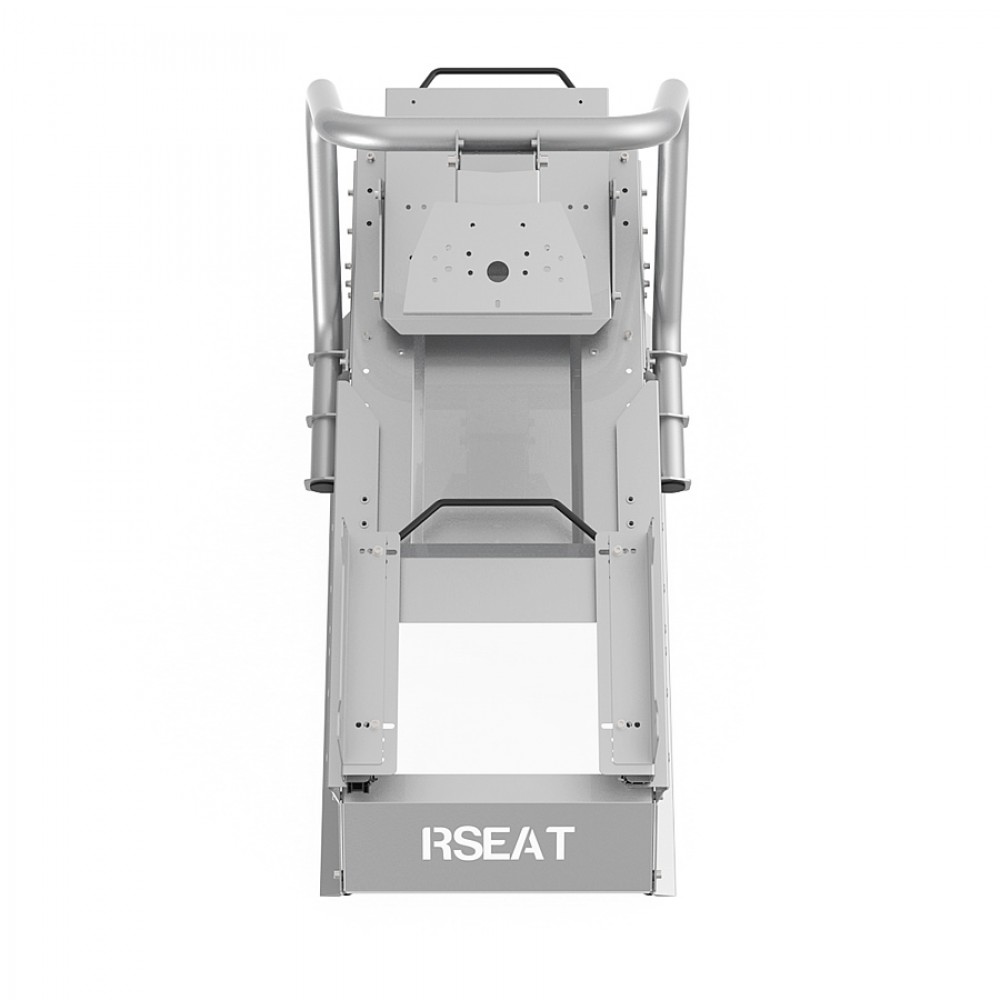

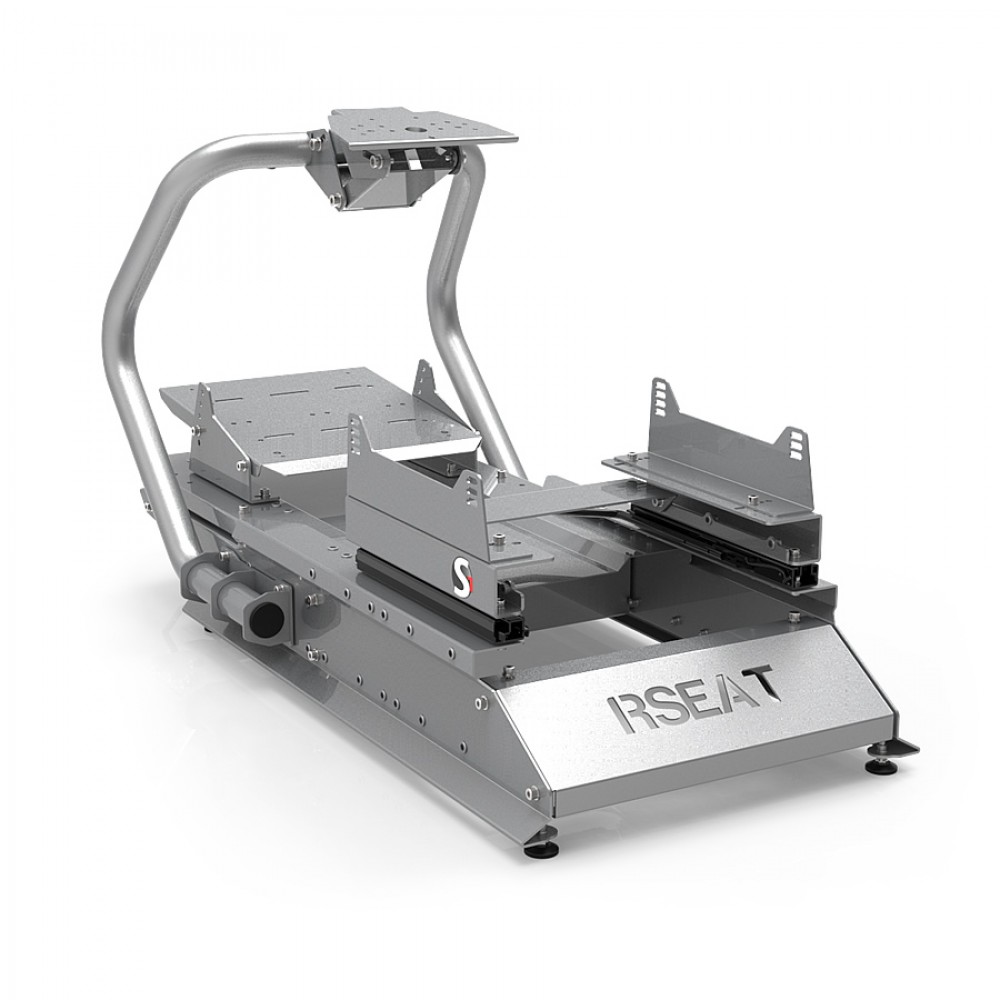

S1 Frame Only Silver

S1 Frame Only Silver
S1 Frame Only Silver
S1 Frame Only Silver
S1 Frame Only Silver
S1 Frame Only Silver
Factory stock
S1 Frame Only Silver
S1 Frame Only Silver
S1 Frame Only Silver
S1 Frame Only Silver
S1 Frame Only Silver




S1 Frame Only Silver
  • Availability: In stock
  • Model: S1FOS
  • Weight: 66.00kg
  • Dimensions: 125.00cm x 55.00cm x 65.00cm
Product Views: 1206
899.00€
Ex Tax: 749.17€

Available Options

OVERVIEW

ADVANCED COCKPIT

  • NEW! S1 is designed to be used as flight simulator rig allowing to install Throttle and joystick (Thrustmaster HOTAS Ready, on both left and right sides) as well as pedals, speakers, buttkicker.
  • NEW! Pedals with sliders for easy ajustements.
  • Support PC, PS3, PS4, PS5, XBOX 360, XBOX One, XBOX Series X | S (check what's supported tab below).
  • Applicable for users from 127cm (4’2″) up to 200cm+ (6’67″+).
  • Seat carry weight up to 140kg (308 lbs).
  • Seating position Rally/GT.
  • Modular Frame (You can upgrade with accessories).
  • Seat Sliders Included.
  • Footprint dimensions: L x W x H 1500 x 630 x 1180 mm. (59” x 24.8” x 46.5”)
  • All tools and screws to attach your wheel and pedals are provided.
  • 2 year Warranty on all RSeat Manufactured components including chassis and seat.
  • Packaging Box: L x W x H 125 x 65 x 55cm (49.2" x 25.6" x 21.6" ) Weight: 55kg (121lbs)
  • 100% Made in EU: Engineered, Designed and Manufactured in Europe.

Chassis

Made of Laser cut carbon steel and CNC bended round tubes.

Comes in Silver matte powder coat paint.

  • Frame step on the ground by 4 adjustable feet (37mm diameter each).
  • Casters Ready (M8 Thread)
  • Wheel console made of Mandrel Bend carbon steel tubes NPS 1-1/2 (Din 48.3mm)
  • Total height (with the seat): 1180 mm (46.5”)
  • Total width: 630 mm (24.8”)
  • Length: 1500 mm. (59”)
  • Pedals plate width 364 mm. (13.62”)
  • Pedals plate adjust from full flat up to 30°
  • Wheel mounting plate allow to adjust height of the wheel ±120 mm (4.72”)
  • Slide pedals front-backwards with sliders (rails) ±200mm (7.87inch)
  • Slide The seat front-backwards with sliders (rails) ±190mm (7.48inch)
  • Net weight: 48 kg (105 lbs)
  • Gross weight 55 kg (121 lbs) The S1 with the packaging.
  • Ready for upgrades

Accessories available in options :

BUTTKICKER UPGRADE KIT

  • Direct fitment on all S1 chassis
  • Easy Installation
  • Available in Black, White or Silver powder coat paint
  • Assembly instructions provided
  • Support all Buttkicker models including Buttkicker ™ Gamer 2, Pearl ™ THMP1, ButtKicker ™ Simulation Kit, Mini LFE, Earthquakesound® ShellShoxx and more..
  • Weight: 6kg (13.22 lbs)
  • Box dimensions: 45cm x 38cm x 19cm (17.7” x 15” x 7.5”)
  • Assembly tools and screws provided.

TABLET AND BUTTONBOX UPGRADE KIT

  • Available in Black, White or Silver powder coat paint
  • Made of laser cut carbon steel and round tubes.
  • Angle and tilt adjustable (both tablet mount and buttonbox mount).
  • Direct fitment on all S1 chassis
  • Assembly instructions provided
  • Fits 5″-10.1″ tablets and all Smartphones
  • Buttonbox mount support: DSD Track Boss, DSD Black Max, DSD Black Max II Buttonboxes and more.
  • Weight: 6kg (13.22 lbs)
  • Box dimensions: 45cm x 24cm x 13cm (17.7” x 9.45” x 5.12”)

SHIFTER/HANDBRAKE UPGRADE KIT

  • NEW! Handbrake Support for the shifter mount. You can attach it on both Left or Right side of the shifter.
  • The most sturdy Shifter mount on the market today!
  • Can adjust the handbrake angle and position.
  • Rise/ Lower / Tilt adjustment.
  • Shifter can be installed on both Left or right side of the S1 chassis.
  • Available in Black, White or Silver powder coat paint.
  • Made of laser cut carbon steel.
  • Adjustable in height, tilt and position.
  • Direct fitment on all S1 chassis.
  • Assembly instructions provided.
  • Weight: 15kg (33 lbs).
  • Box dimensions: 51cm x 25cm x 19cm (20” x 9.85” x 7.5”).
  • Assembly tools and screws provided.

KEYBOARD AND MOUSE TRAY UPGRADE KIT

  • NEW! User is able to place the keyboard and mouse tray infront of the wheel.
  • Available in Black, White or Silver powder coat paint.
  • Made of laser cut carbon steel and round tubes.
  • Fully Adjustable.
  • Direct fitment on all S1 chassis.
  • Assembly instructions provided.
  • Keyboard tray dimensions 720 mm. x 225 mm. (28.34” x 8.85”).
  • Mouse tray diameter – 200 mm. (7.87”).
  • Weight: 11kg (24.25 lbs).
  • Box dimensions: 74cm x 25cm x 15cm (29.13” x 9.84” x 5.9”).
  • Assembly tools and screws provided.

SPEAKERS MOUNT UPGRADE KIT

  • Available in Black, White or Silver powder coat paint.
  • Made of laser cut carbon steel.
  • Direct fitment on all S1 chassis.
  • Assembly instructions provided.
  • Support Logitech® Z906 5.1 sound system. Other Speaker systems with wall mount support can be attached.
  • Assembly tools and screws provided.
  • Weight: 5kg (11 lbs).
  • Box dimensions: 30cm x 30cm x 19cm ( 11.8” x 11.8” x 7.4”).
  • Assembly tools and screws provided.

NEW! S1 FLIGHT MOUNT UPGRADE KIT

  • NEW! FLIGHT Mount upgrade kit Thrustmaster HOTAS Ready.
  • Fully adjustable position on both left and right Joystick/Throttle mounts.
  • Available in Black, White or Silver powder coat paint.
  • Made of laser cut carbon steel.
  • Adjustable in hight, tilt and possition.
  • Direct fitment on all S1 chassis.
  • Assembly instructions provided.
  • Weight: 24kg (52.9 lbs).
  • Box dimensions: 51cm x 51cm x 19cm (20” x 20” x 7.5”).
  • Assembly tools and screws provided.

Factory Stock
Factory ShippingFactory Shipping

S1 BASIC SETTINGS

The advanced design of the S1 allows you to set up your racing position in seconds.
