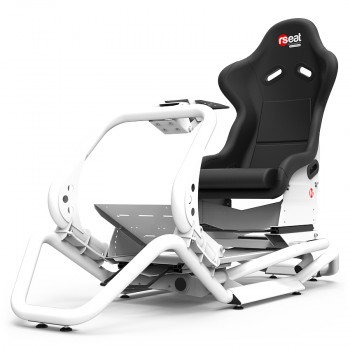

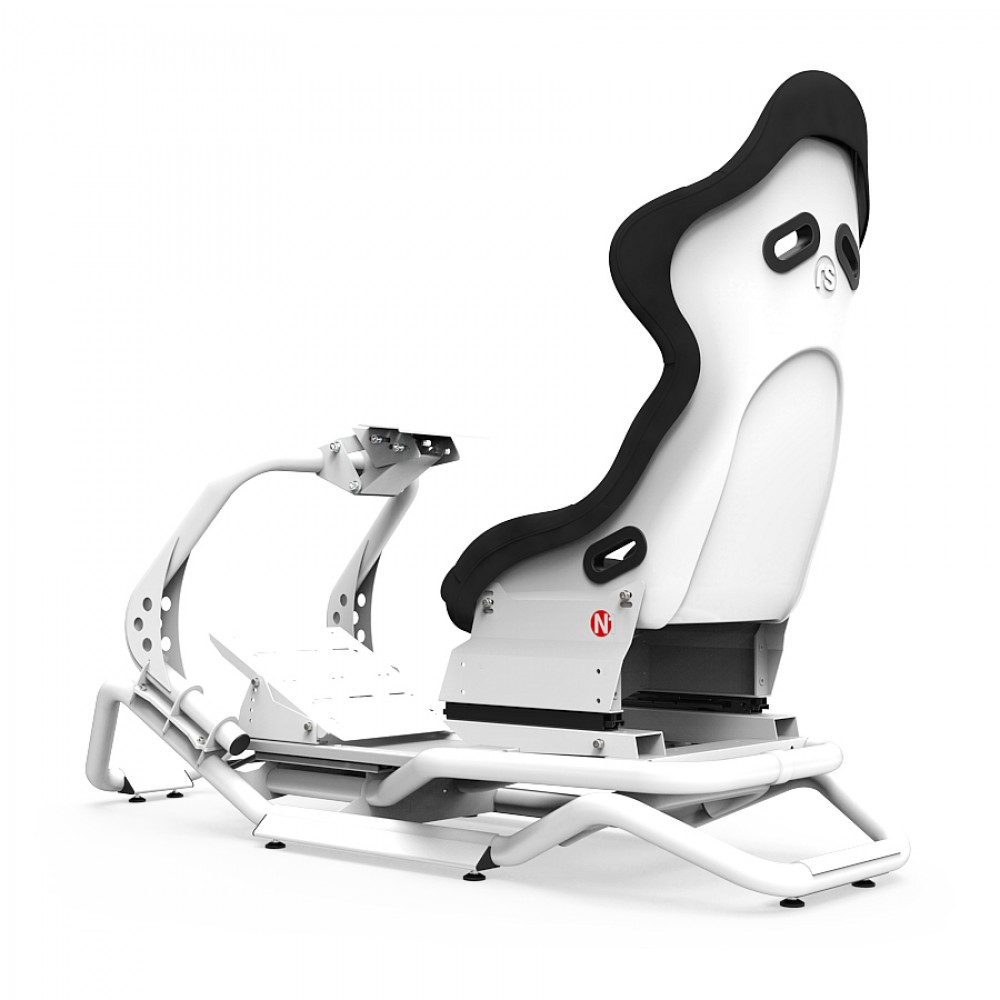

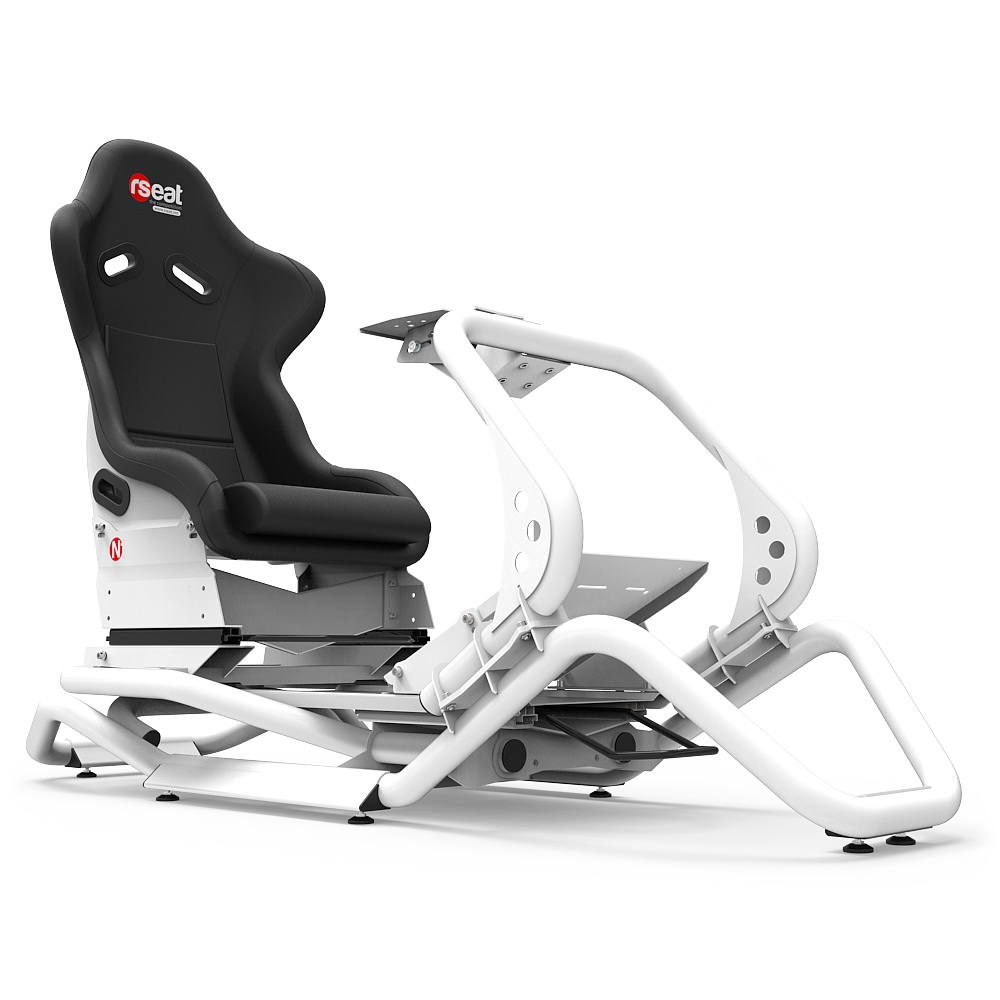

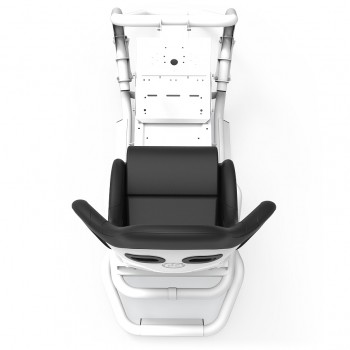

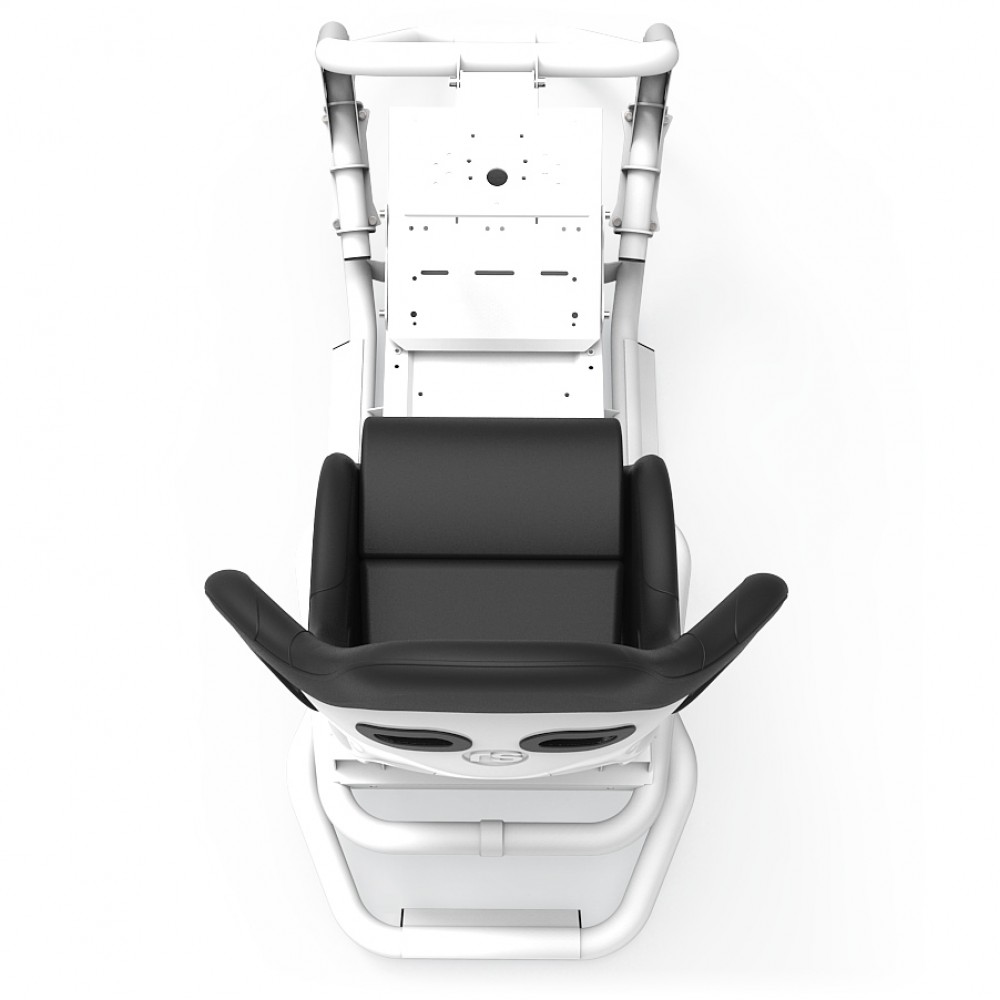

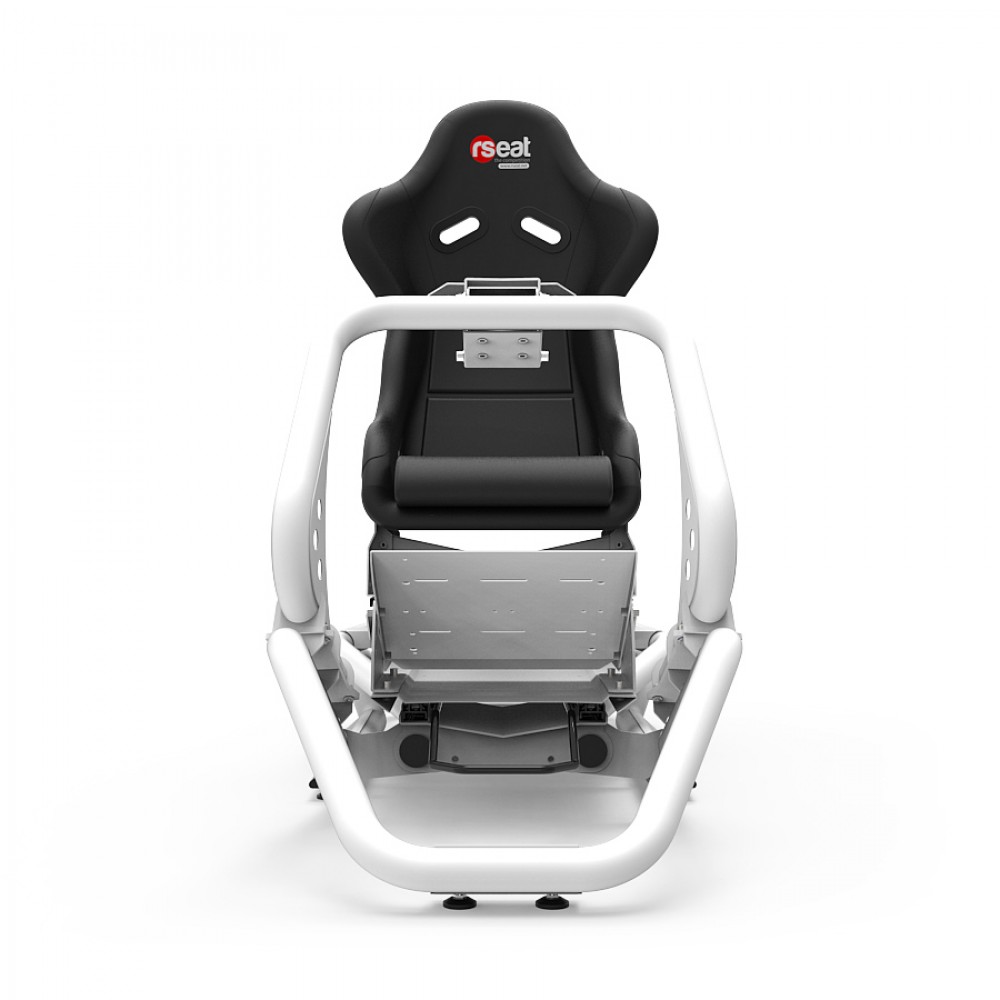

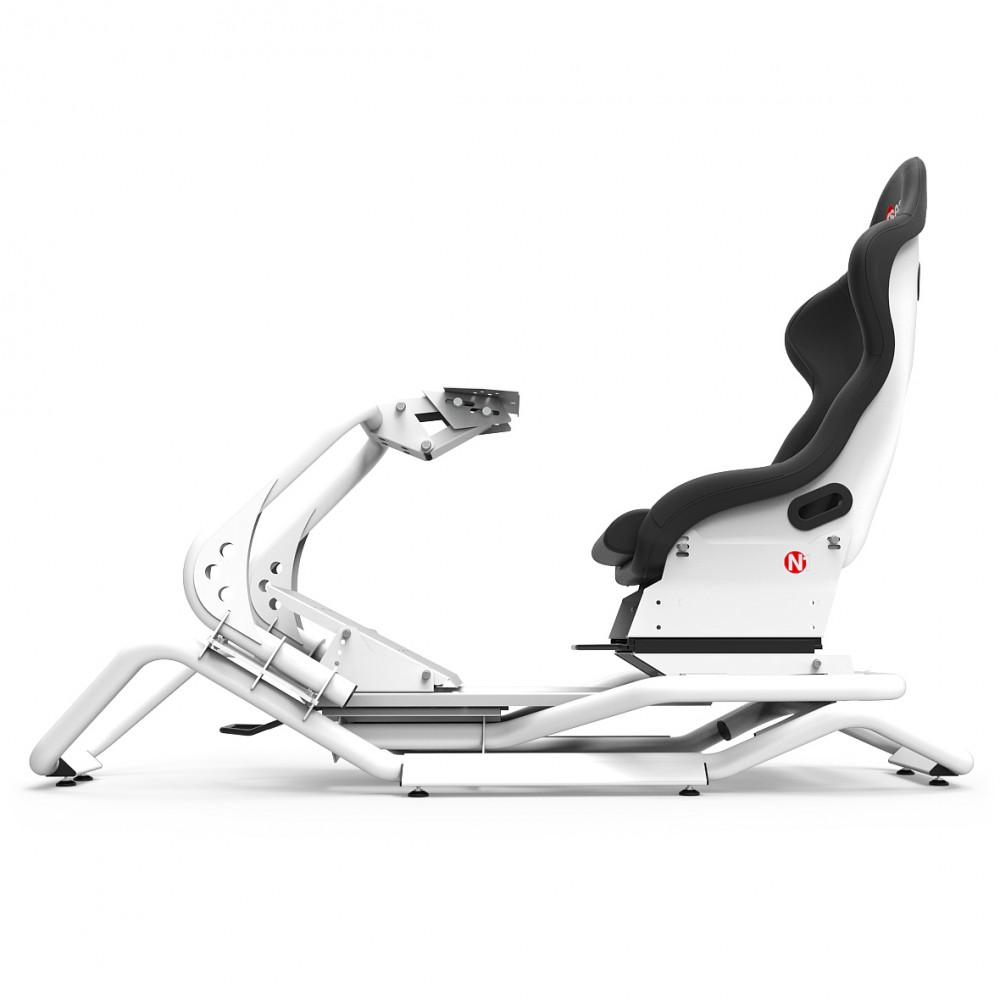

RSeat N1 "ADVANCED COCKPIT"
Lastest 2016 product from the RSeat development team, the N1 is a new generation simulator built, like its little brother the RS1, with a modular design. Everything has been reviewed, including ergonomics, strength, comfort and upgradeability. The N1 will be your partner for long sessions of racing, whether you are a professional or an experienced enthusiast. This is the perfect chassis for you!
- NEW! Pedals with sliders for easy adjustment
- Support PC, PS3, PS4, PS5, XBOX 360, XBOX One, XBOX Series X | S (check what's supported tab below)
- Applicable for users from 127cm (4’2″) up to 200cm+ (6’67″+)
- Seat carry weight up to 140kg (308 lbs)
- Seating position Rally/GT
- Modular Frame (You can upgrade with accessories)
- Seat Sliders Included
- Footprint dimensions: L x W x H 1815 x 640 mm. x 1305 mm. (71.45” x 25.2” x 51.4”)
- 2 year Warranty on all RSeat Manufactured components including chassis and seat
- 100% Made in EU: Engineered, Designed and Manufactured in Europe.
The Seat :
- Seat shell made of composite materials and finished in the same gloss color as the frame.
- Leather comes in 3 color options (White, Black and Red), and Alcantara®
- N1 Allow to recline the entire seat ±4°
- Seat sliders allow to adjust it front-backwards ±90mm (3.54inch)
- Highly wear resistant suitable for game race centers.
- Frame step on the ground by 8 adjustable legs (37mm diameter each).
- Casters Ready (M8 Thread)
- Made of Mandrel Bend carbon steel tubes NPS 1-1/2 (Din 48.3mm)
- Total height (with the seat): 1305 mm (51.4”)
- Total width: Rear: 640 mm (25.2”)
- Length: 1815 mm. (71.45”)
- Pedal plate width 364 mm. (13.62”)
- Pedal plate adjust from full flat up to 60°
- Wheel mounting plate allow to adjust height of the wheel ±120 mm (4.72”)
- Slide pedals front-backwards with sliders (rails) ±120mm (4.72inch)
- Slide The seat front-backwards with sliders (rails) ±120mm (4.72inch)
- Net weight: 65 kg (143 lbs)
- Gross weight 70 kg (154 lbs) The N1 with the packaging.
- Ready for upgrades
Available Upgrades (check Accessories tab below) :
- 1. Buttkicker mounting kit. Support Buttkicker ™ Gamer 2, Pearl ™ THMP1, ButtKicker ™ Simulation Kit, Earthquakesound® ShellShoxx and more..
- 2. Tablet and Buttonbox mounting kit. All way adjustable including tilt and angle.
- 3. Keyboard and mouse tray. All way adjustable including angle, tilt and height, user is able to place the keyboard and mouse tray in front of the wheel.
- 4. Speakers Mounting kit. Logitech Z906 Supported and more..
- 5. Shifter and Handbrake Upgrade kit. Support Thrustmaster TH8RS, TH8A Add-On Shifter, TSS Handbrake Sparco Mod – Fanatec ClubSport Shifter SQ (all versions), ClubSport Shifter, ClubSport Handbrake – Logitech G29 Shifter, G920 Shifter, G27 Shifter, G25 Shifter.
- Additional upgrades include D-BOX Motion, TV/monitor stands for up to 3x47inch tv's.
What's Included :
- Racing seat with Synthetic Leather available in 3 colors Black, Red, White, and Alcantara®
- Chassis body (including seat sliders and pedal plate sliders)
- Pedals Support
- Wheel Support
- Seat L mounts
- Assembly instruction with tools and screws included to attach you wheel, pedals and shifter
- Carton box and bubble wrap protection inside the box to prevent damages on transit. N.W 100kg
Packaging dimensions :
Box 1 Dimensions: L x W x H 185 x 65 x H30cm (72.84" x 25.6" x 11.8" ) G.W 70kg (154lbs)
Box 2 Dimensions: L x W x H 97 x 64 x H48cm (38.2" x 25.2" x 18.9" ) G.W 30kg (66lbs)
What's in the box :
- We provide on site support through ticket or live-chat.
- Distributor network allow to have full support in your area.
Shipping information :
Warning: Shipping of this product is not possible by DHL , the length of 185cm and weight of 100kgs exceeds the standards for this shipping company.
