We've heard you! Ergonomic, Stable and Stiff by the quality of the raw materials and their thicknesses, combined with new painting tools, Extreme Reinforcements and Welding! .... Don't be surprised by the appearances! At RSeat you are not in the save of materials category! Our new 2021 range is without any compromise! Our investments in innovative technical solutions, combined with a modern production tool dedicated exclusively to the quality of Simracing and eSport, allow RSeat to guarantee you ultra-high quality chassis, with an unfailing durability and will be compatible with the products that will be available in the future for Simracing.

Wheel console has been reengineered and provides maximum rigidity quality, for Simracers who are looking for the most demanding feel and feedback from the steering wheel. Ready for maximum torque from high range Direct Drive wheels. New ! as an option : Simucube Wheel mount, for SIMUCUBE1, SIMUCUBE2 Sport / Pro / Ultimate, VRS DirectForce Pro, Mige motor and more..

New ! Pedals plate support engineered to bear maximum braking forces from hydraulic pedals and with sliders for easy adjustment and non-slip aluminum plate up to the seat… SimTag, Heusinkveld, Ricmotech, Racewerk, NSH Pedals will not intimidate it.

Keyboard & Mouse support can now be installed on the left or right side of the chassis, and used suitable for both right and left handed people.

Shifter and Handbrake support revised to offer maximum rigidity, as well as many different adjustability options.

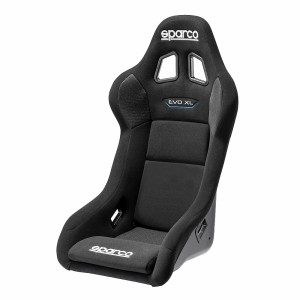

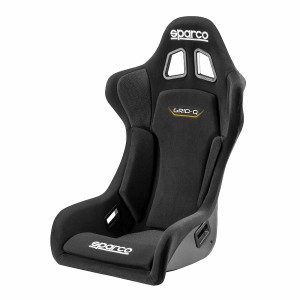

New ! design seat plates, to ensure that every customer will find the right position to race. Choose yours from a wide range of RSeat Eco-Leather or Alcantara, as well as a selection of SPARCO Seats. You can also install all bucket seats you want (side mounting, and bottom mounting).

New ! Sturdy screen support attached directly on the Frame, from 24" up to 49" 32:9 Ultra wide monitor.

Buttkicker Support with easy installation, and supports all Buttkicker models including Buttkicker Gamer 2, Pearl THMP1, ButtKicker Simulation Kit, Mini LFE.

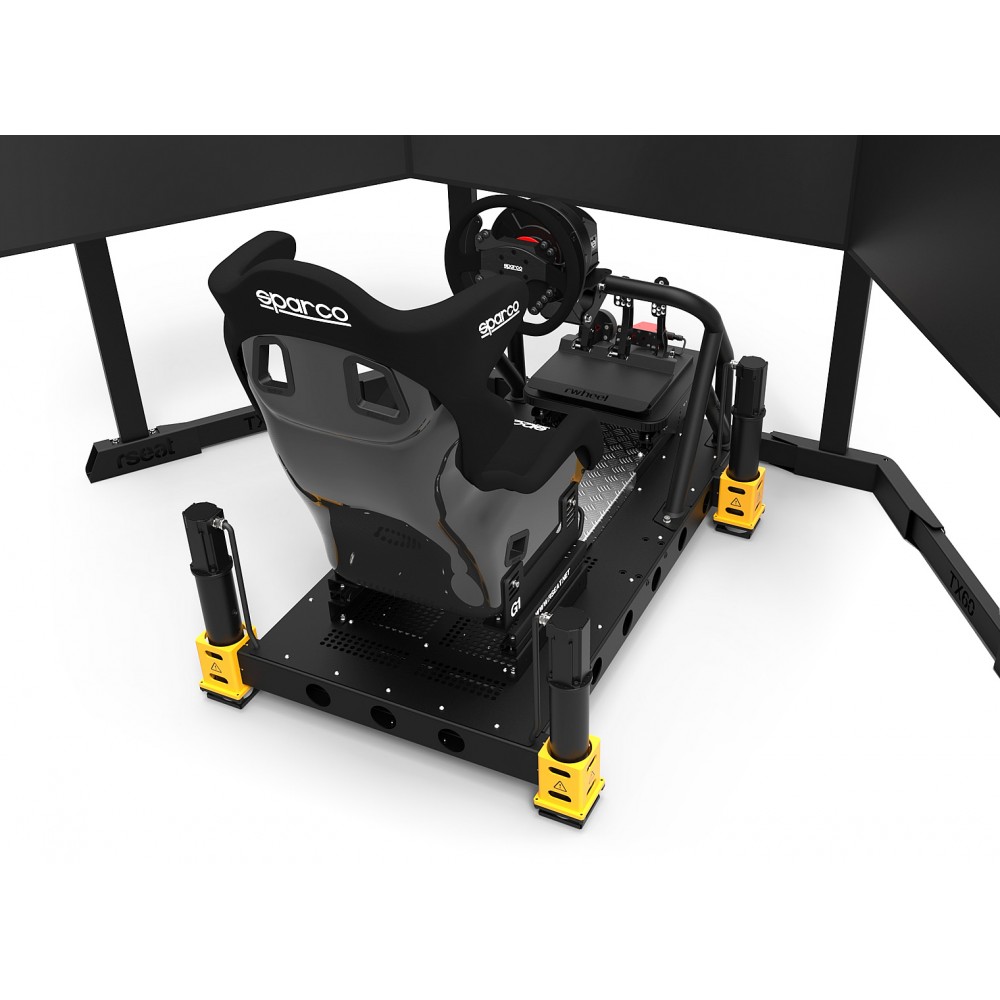

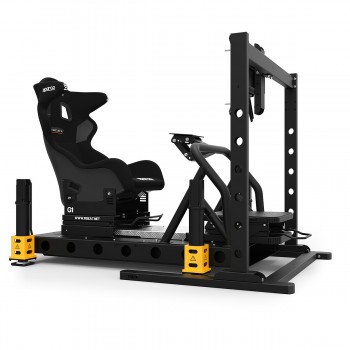

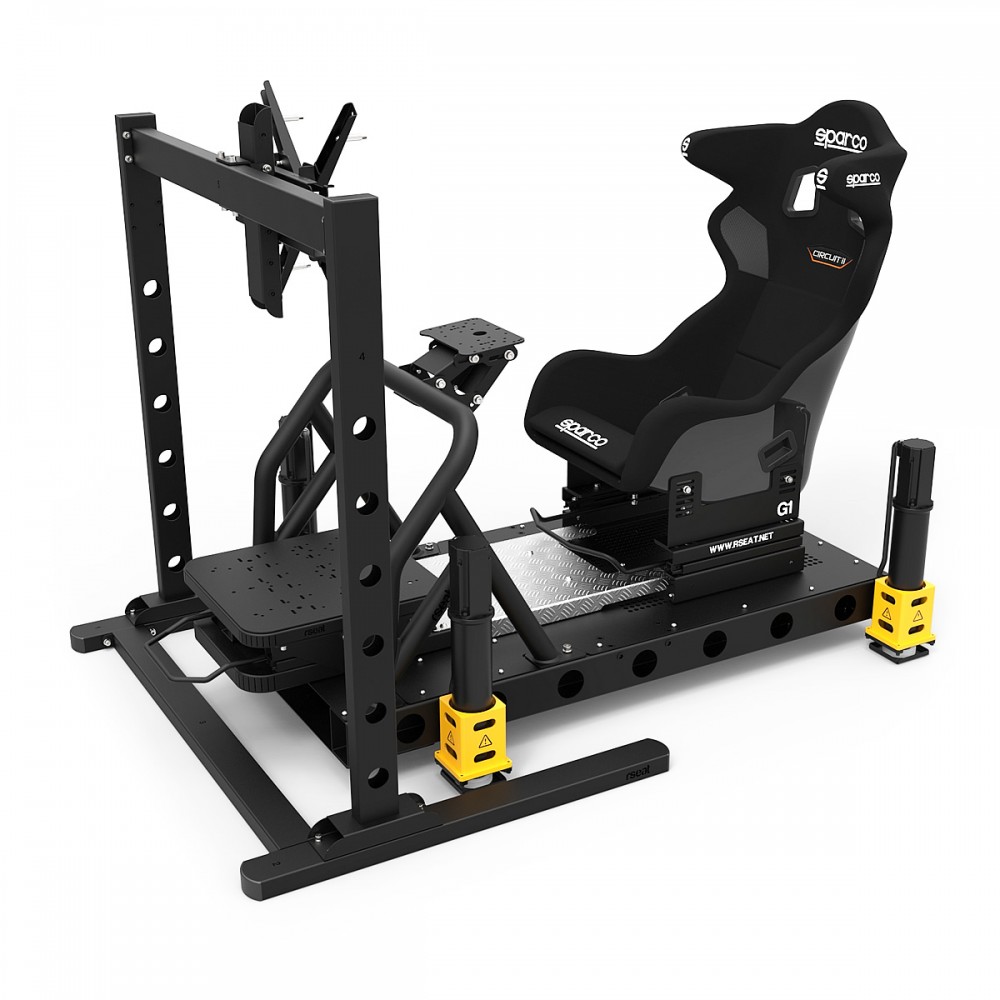

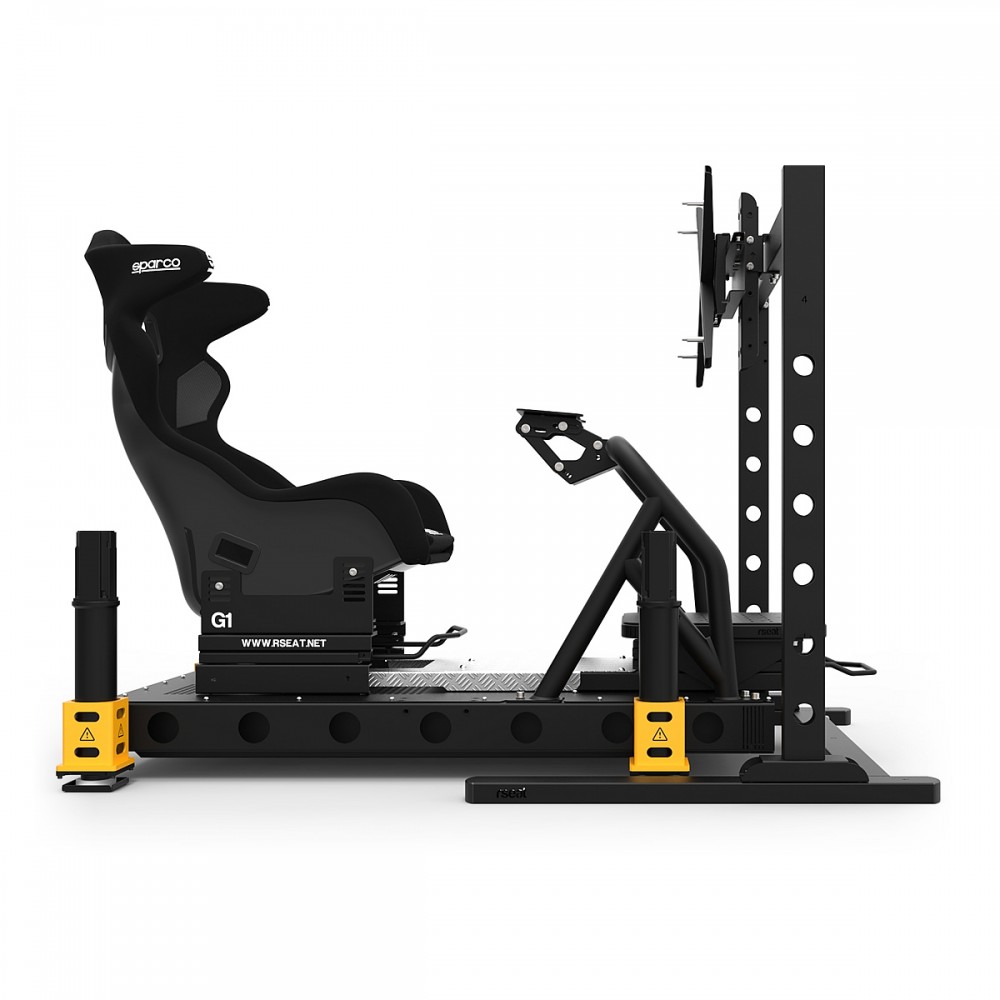

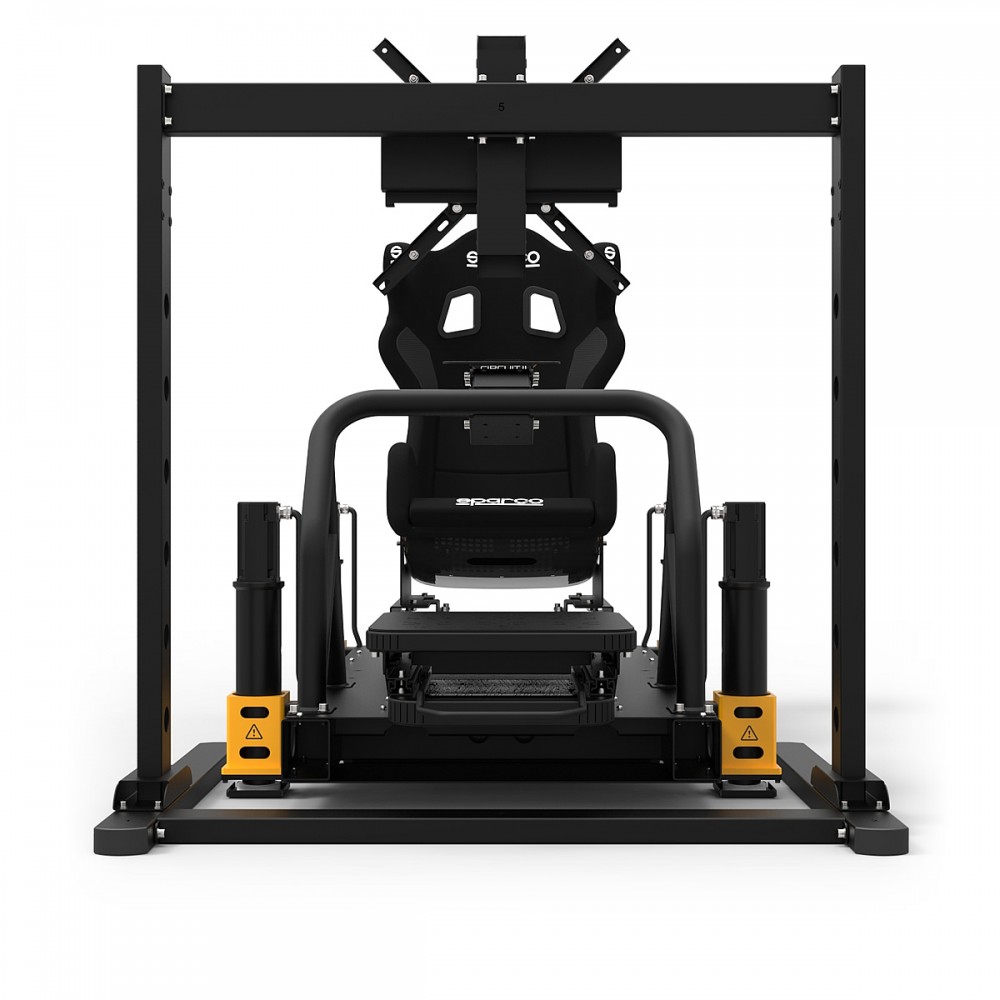

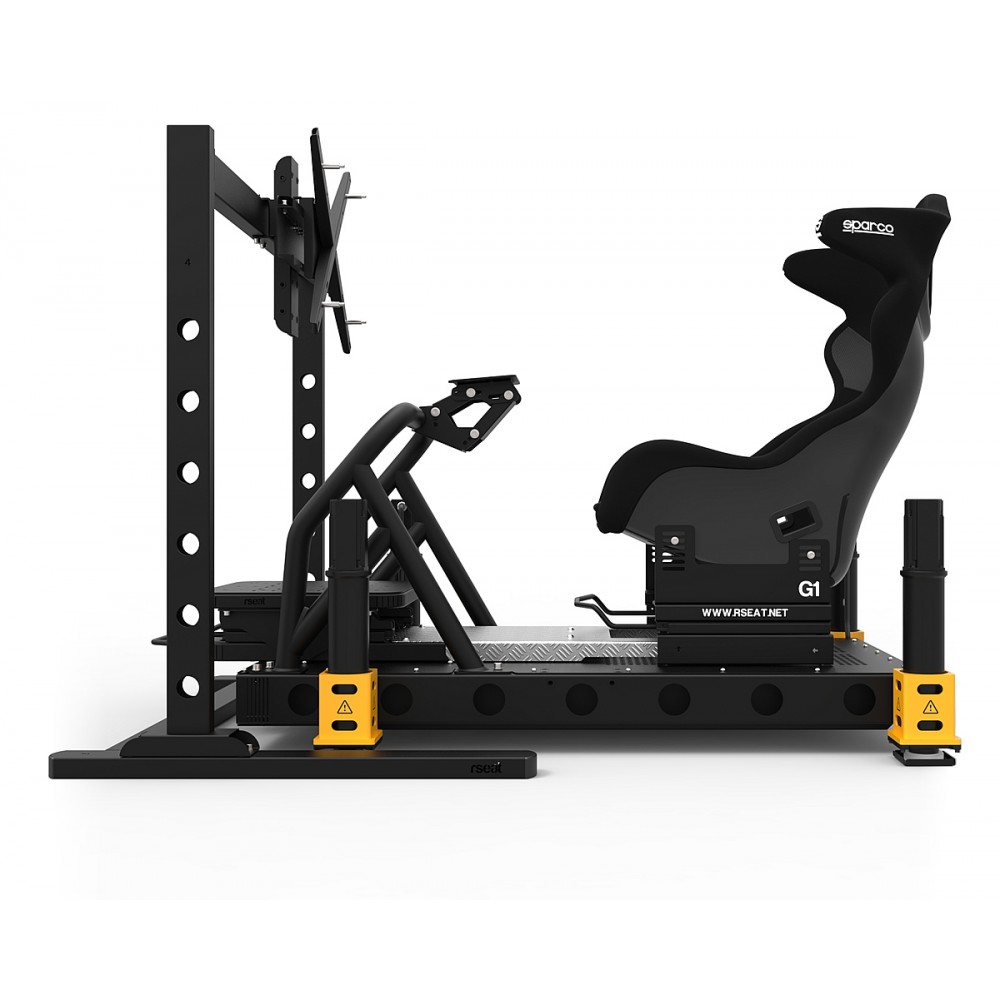

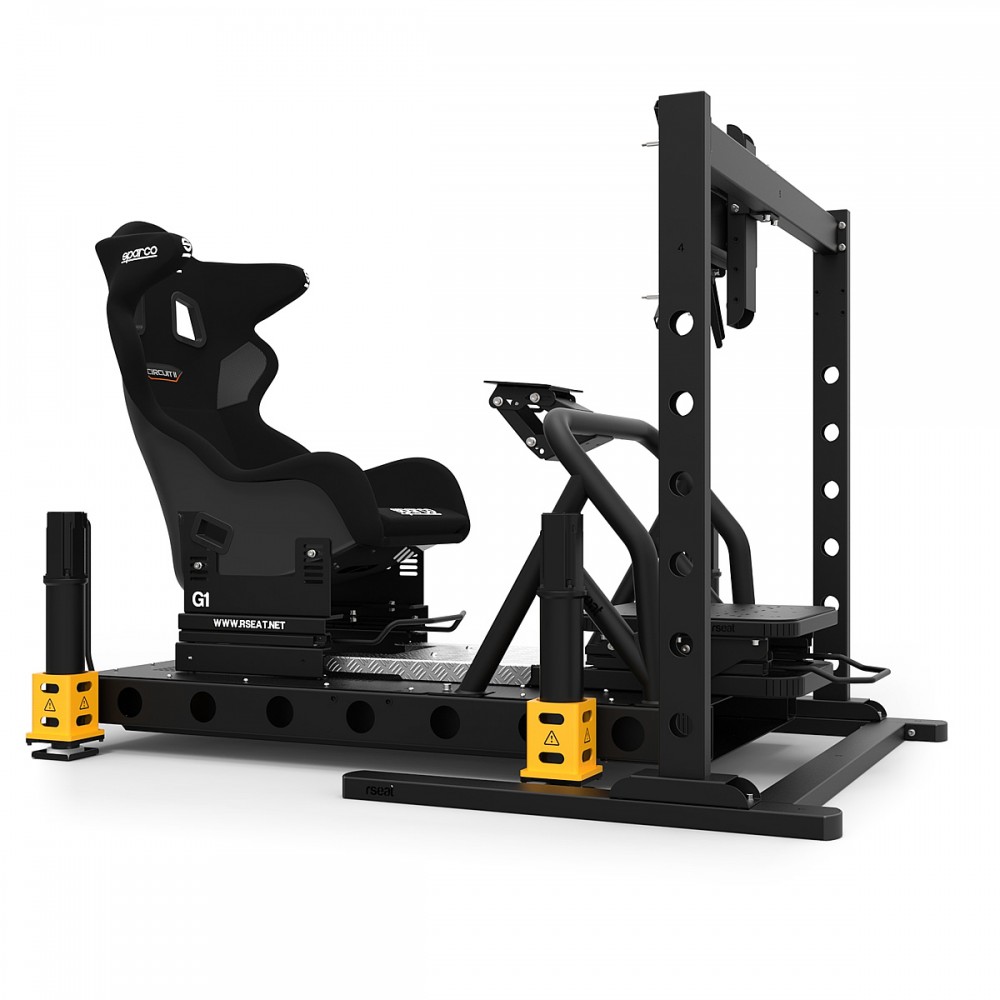

G1 6000 D-BOX 4500HD GEN3 HAPTIC SYSTEM
  • Availability: On order
  • Model: G1 6000
  • Weight: 200.00kg
  • Dimensions: 200.00cm x 100.00cm x 100.00cm
Product Views: 3267
38,398.80€
Ex Tax: 31,999.00€

Available Options

G1 6000 D-BOX 4500HD GEN3 HAPTIC SYSTEM 6inch

  • Ultra durable and stable construction. Support any Direct Drive wheel and professional pedals with load cell or hydraulic
  • Only FIA Licensed haptic system on the market
  • D-BOX redefines and creates realistic, immersive and haptic entertainment experiences by providing feedback to the whole body.
  • All way adjustable chassis including wheel, pedals, seat, attachments. Seat /Pedals slide front-back with rails
  • Modular Design. Each module completely independent
  • User height from 127cm (4’2″) up to 200cm+ (6’67″+)
  • Footprint Dimensions: L x W 1780mm x 900mm (70” x 35.4”)
  • All tools and screws to attach your wheel, pedals are provided.
  • 5 year Warranty on all Rseat Manufactured components
  • Model 2021
  • 100% Made in EU: Engineered, Designed and Manufactured in Europe.

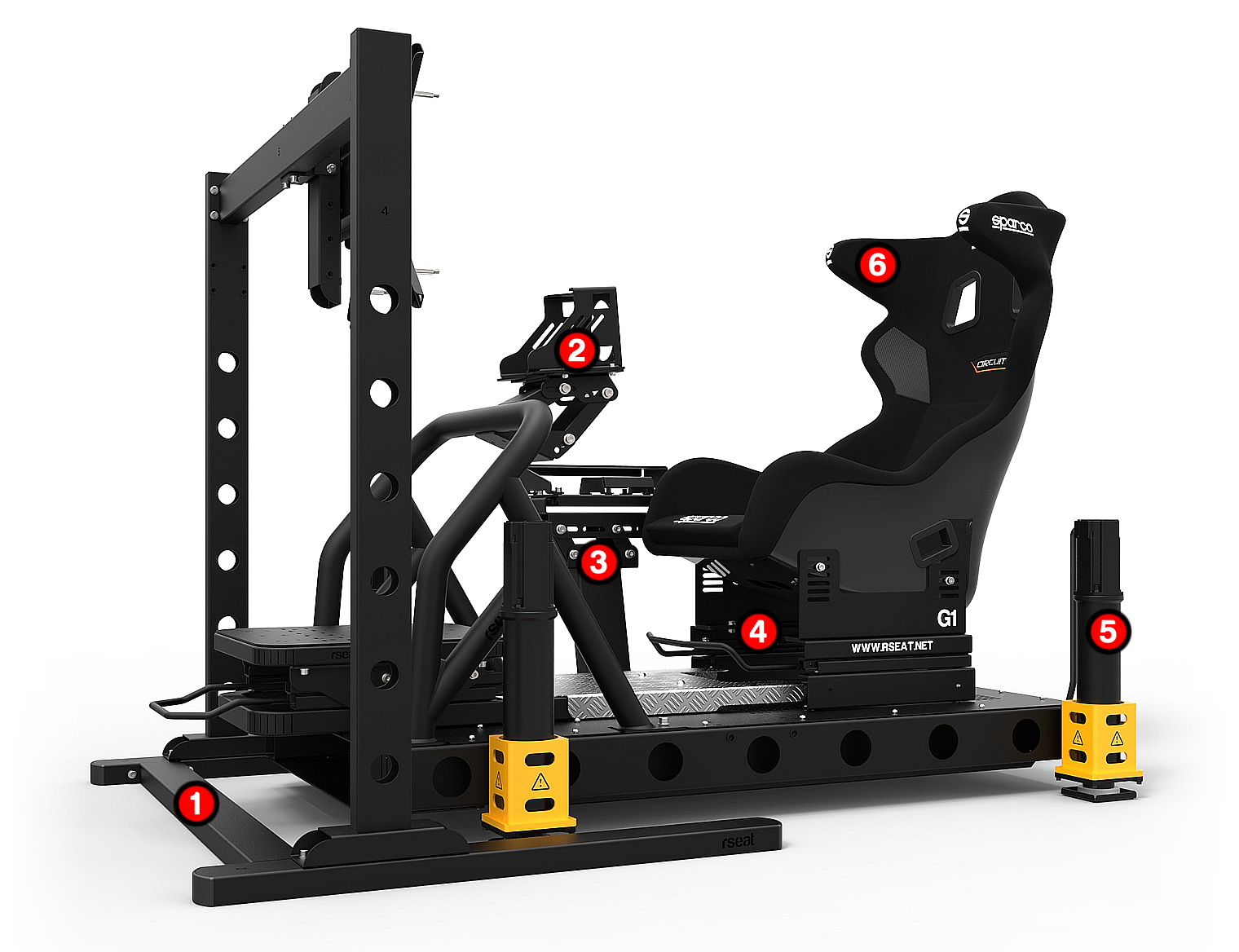

FEATURES / ADD-ONS

Modular Design.  Each module completely independent of the others.  Build the ultimate cockpit that fits your needs.

RSEAT G1 6000

RSEAT G1 d-box 6inch

1

  • TV/MONITOR Stand options

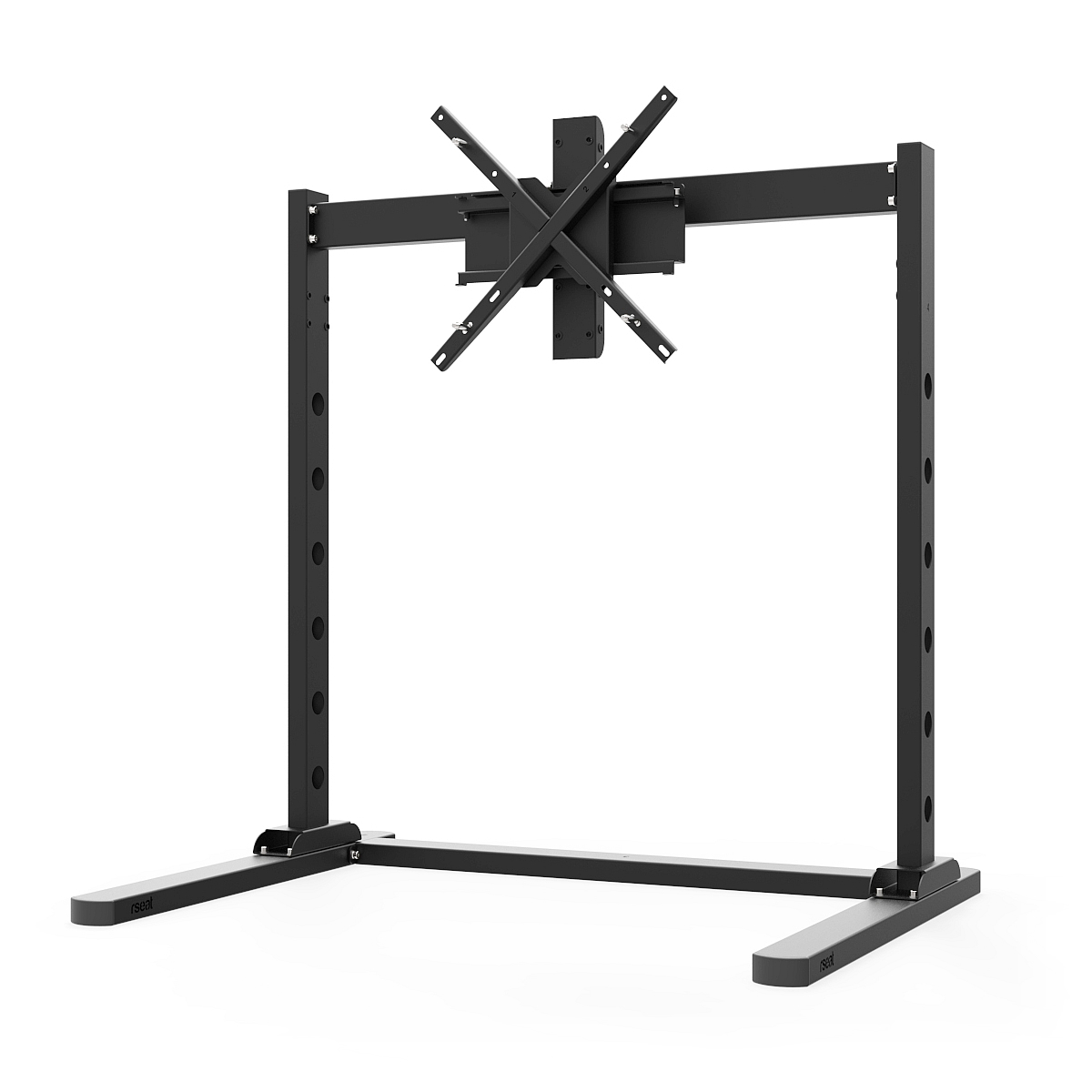

  • RSEAT SX90 Stand - Single 27"-90" TV/Monitor/Ultra Wide Monitor stand (included)
  • RSEAT TX40 Stand - Triple 27"-40" TV/Monitor/Ultra Wide Monitor stand (optional)
  • RSEAT TX60 Stand - Triple 43"-60" TV/Ultra Wide Monitor stand (optional)
  • RSEAT TX90 Stand - Triple 65"-90" TV stand (optional)



2

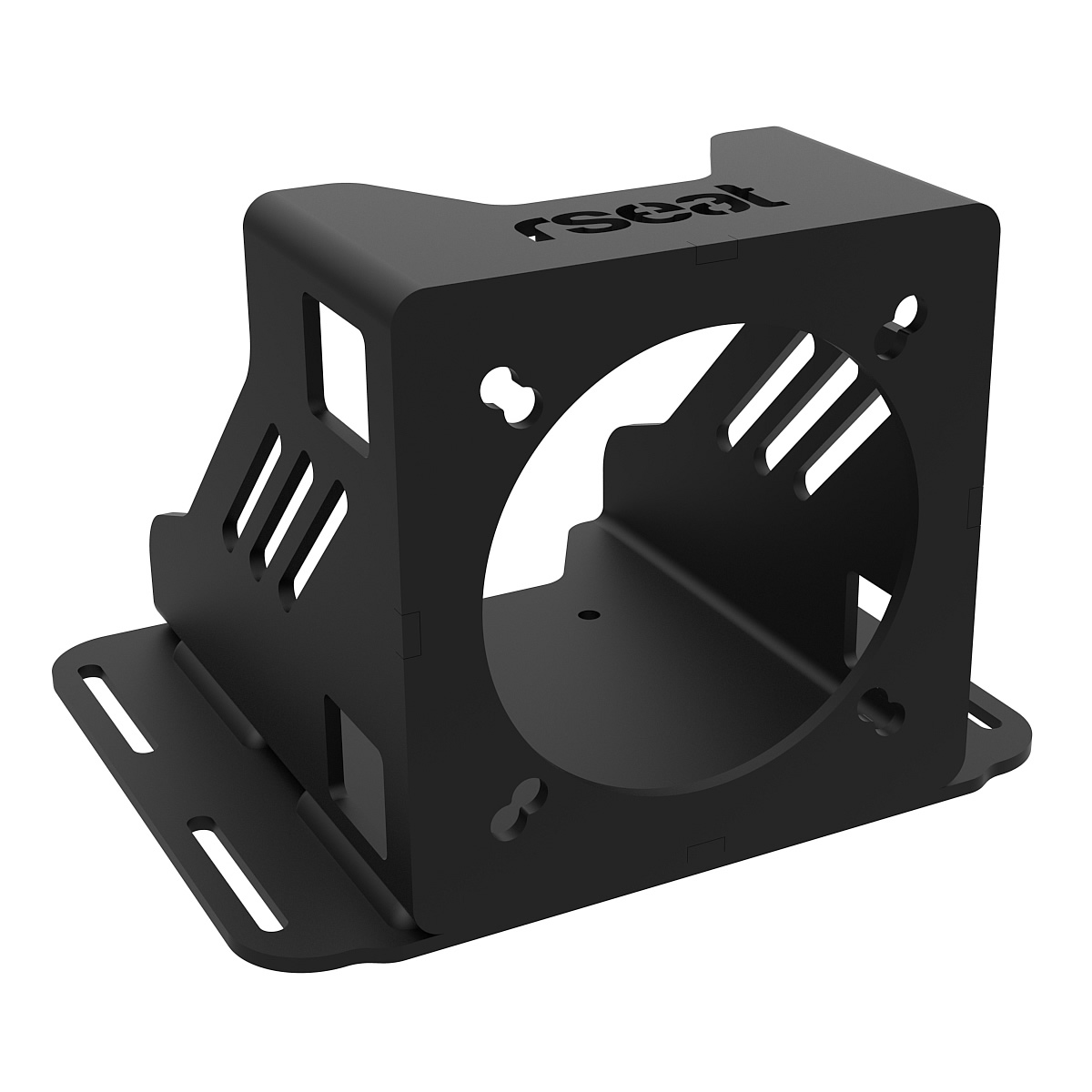

  • SIMUCUBE1, SIMUCUBE2 Sport / Pro / Ultimate, Mige mount

  • Easy Installation. Direct bolt-on
  • Comes in Black powder coat paint.
  • Made of laser cut carbon steel and square tubes.
  • Ultra Durable mount.
  • Compatible with SIMUCUBE1, SIMUCUBE2 Sport / Pro / Ultimate, VRS DirectForce Pro, Mige motor and more..
  • Weight: 3kg (6.6 lbs)
  • Assembly instruction, tools and fasteners provided.



3

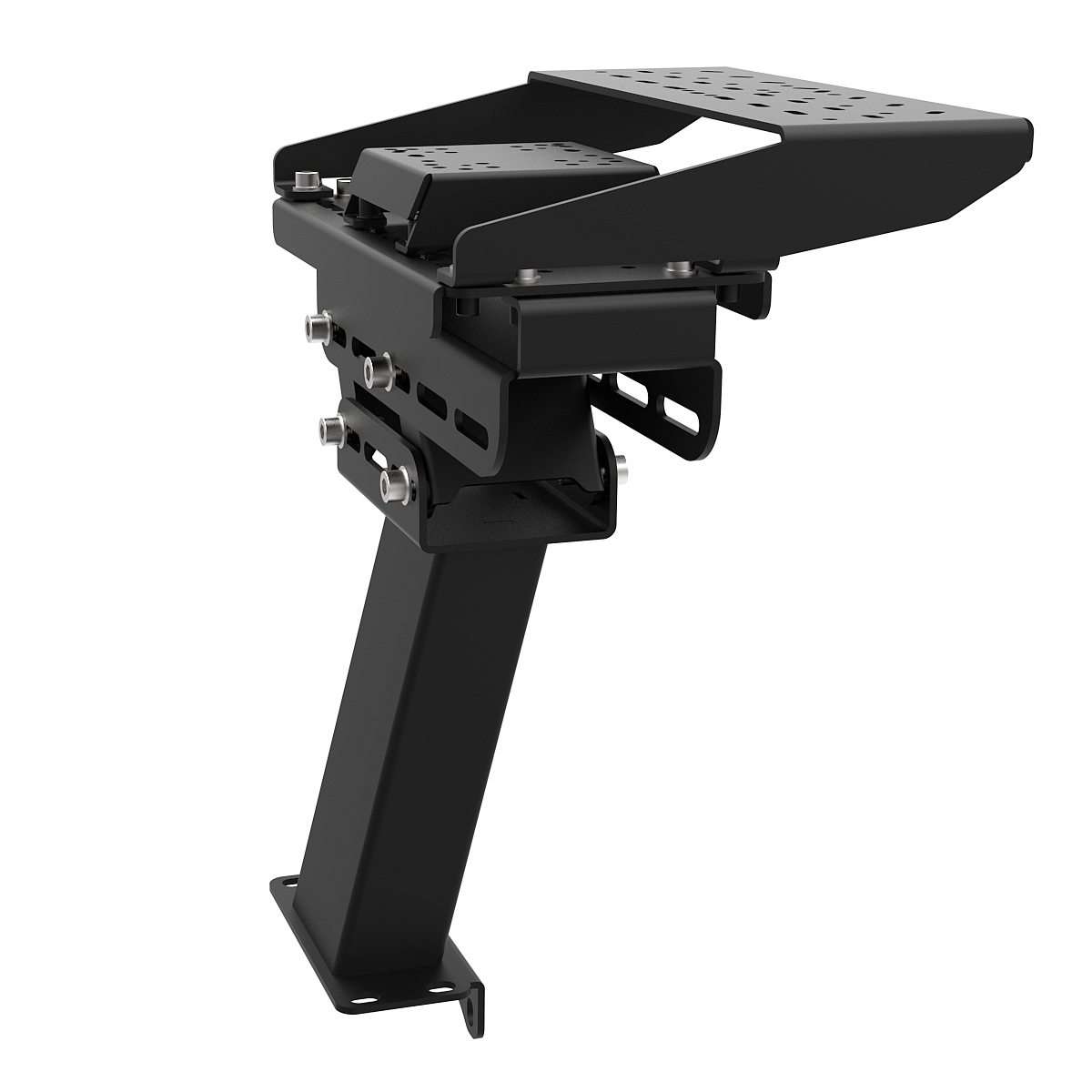

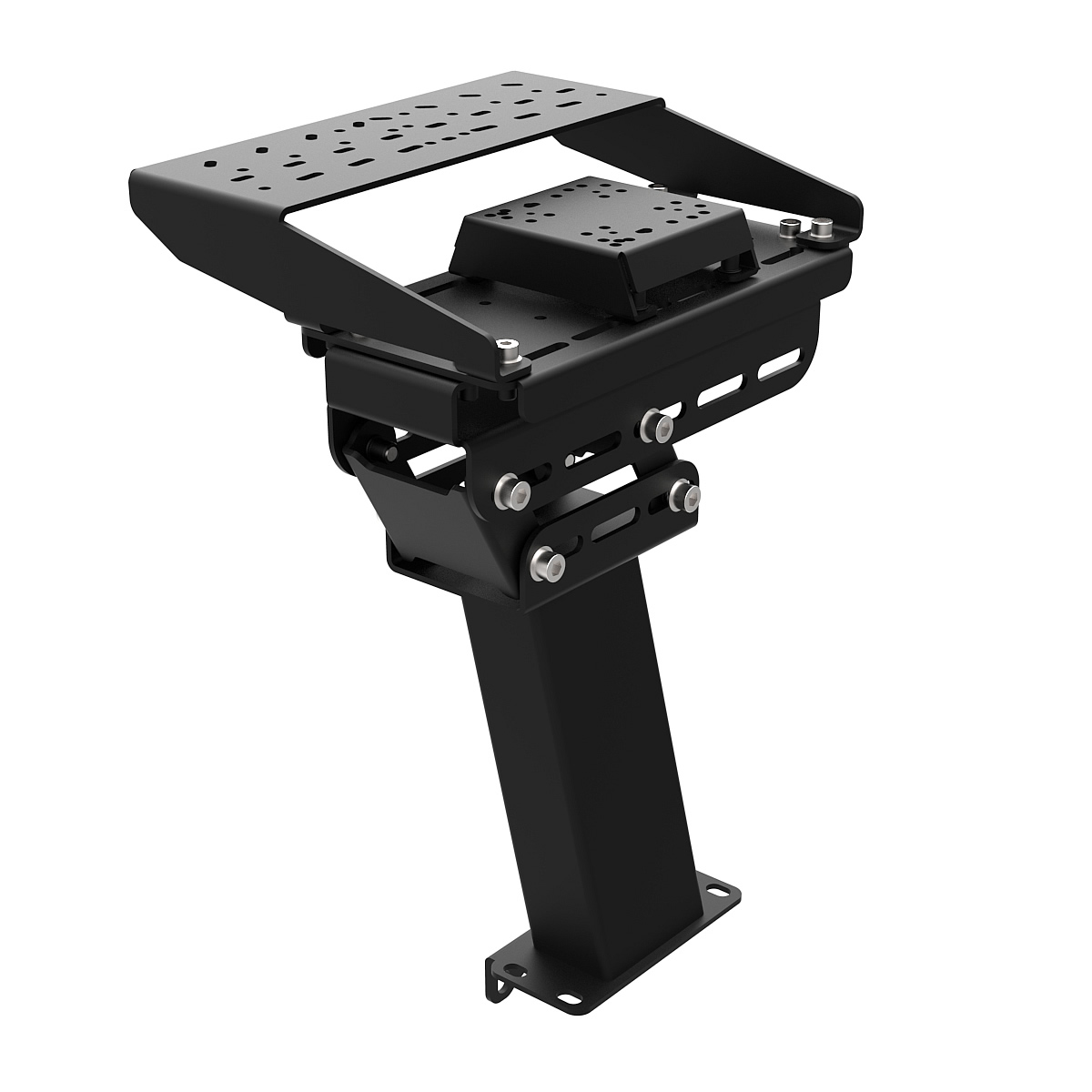

  • G1 Shifter / Handbrake Upgrade Kit

  • NEW! Install on the left or right side of the chassis
  • Comes in Black powder coat paint.
  • Made of laser cut carbon steel and square tubes.
  • Height, tilt and position adjustable
  • Handbrake angle and position adjustable
  • Compatible with Fanatec ClubSport Shifter SQ (all versions), Fanatec ClubSport Handbrake V1.5, Thrustmaster TH8RS, Thrustmaster TH8A, Thrustmaster TSS Handbrake/Shifter Sparco Mod, Heusinkveld Sim Shifter Sequential, Heusinkveld Sim Handbrake, 2015 DSD Pro Sequential Shifter
  • Ultra Durable construction
  • Weight: 12kg (26.5 lbs)
  • Assembly instruction, tools and fasteners provided.



4

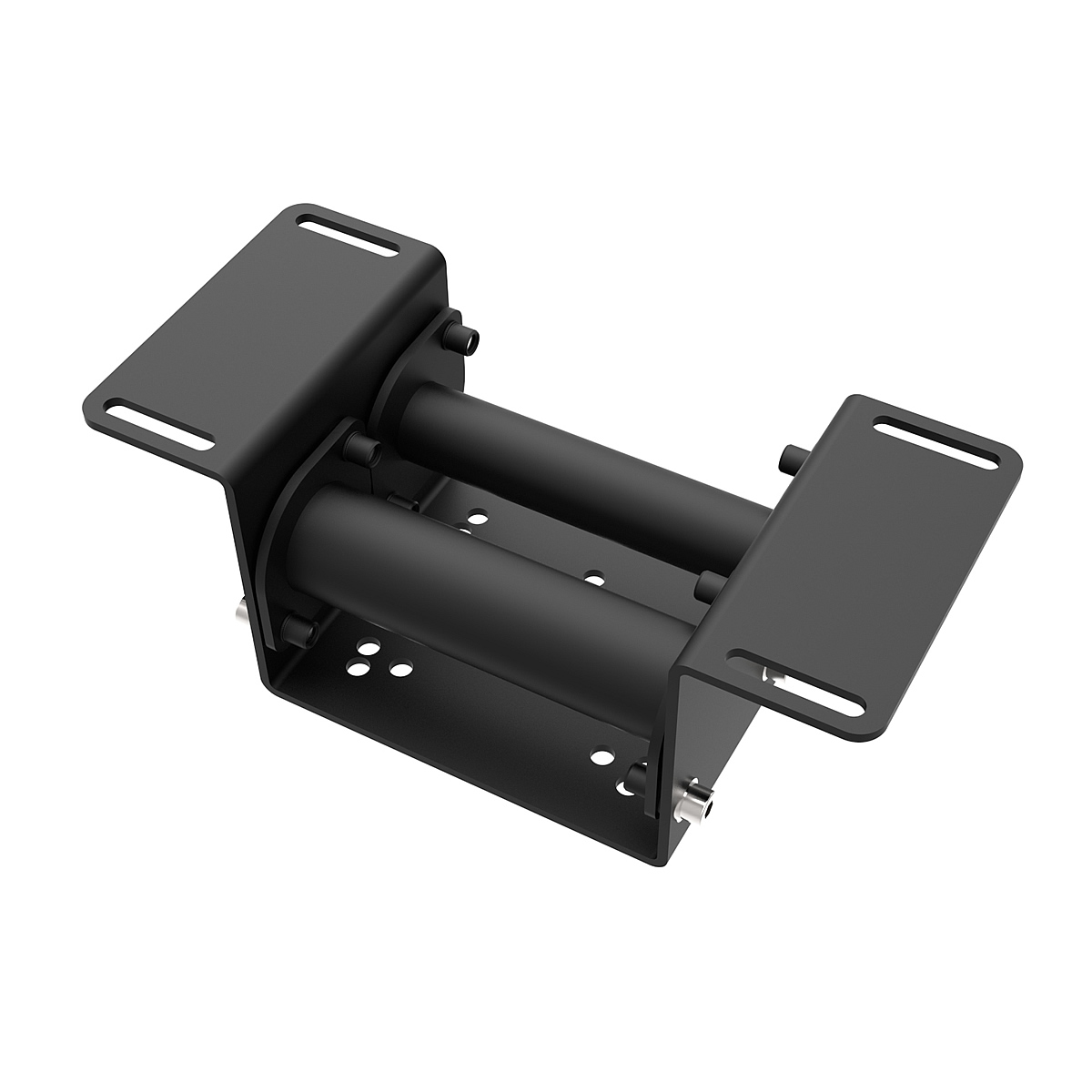

  • Buttkicker Mount Upgrade kit

  • Easy Installation
  • Comes in Black powder coat paint.
  • Made of laser cut carbon steel and round tubes.
  • Slide with the seat.
  • Support all Buttkicker models including Buttkicker ™ Gamer 2, Pearl ™ THMc1, ButtKicker ™ Simulation Kit, Mini LFE
  • Weight: 3kg (6.6 lbs)
  • Assembly instruction, tools and fasteners provided.



5

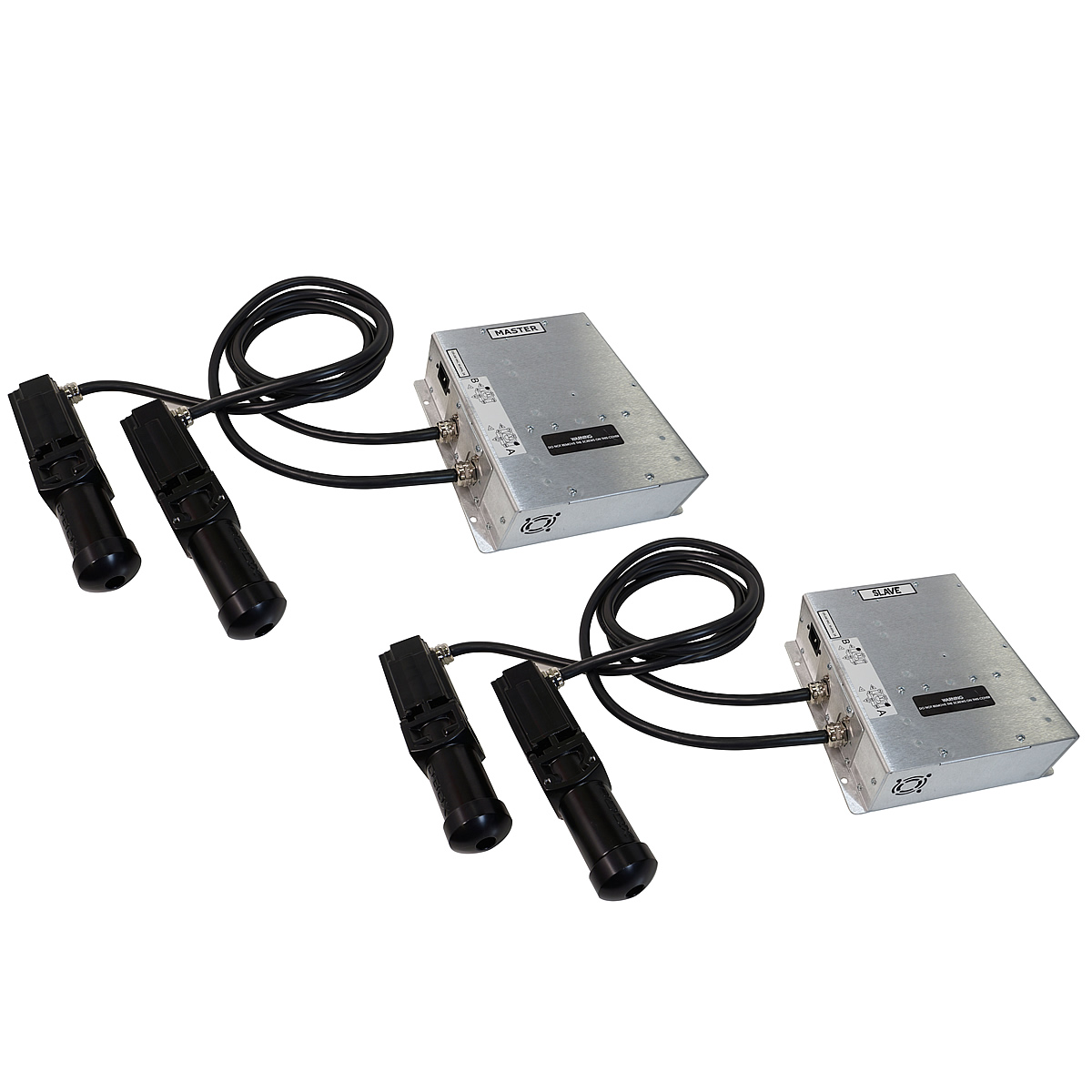

  • D-BOX 4500HD G3 Haptic System 6inch

  • Only FIA Licensed haptic system on the market
  • D-BOX 4500HD G3 Haptic System
  • ACM Control boxes 110V / 230V
  • KCU Controller
  • 4 actuators with 6" (152,4mm) stroke
  • Load: 228kg (500lbs ) per actuator
  • Maximum velocity - ± 100 mm/sec
  • Voltage: 110v and 230v
  • D-BOX software is Windows PC compatible only
  • Simple plug-and-play Designed to be effortless.



6



Accessories available in options :

G1 Shifter / Handbrake Upgrade Kit

  • NEW! Install on the left or right side of the chassis
  • Available in Black powder coat paint
  • Made of laser cut carbon steel and square tubes
  • Height, tilt and position adjustable
  • Handbrake angle and position adjustable
  • Shifter position adjustable
  • Mouse tray diameter – 200 mm. (7.87”)
  • Ultra Durable construction
  • Weight: 12kg (26.5 lbs)
  • Assembly instruction, tools and fasteners provided

Buttkicker Mount Upgrade kit

  • Easy Installation
  • Available in Black powder coat paint
  • Made of laser cut carbon steel and round tubes
  • Slide with the seat
  • Support all Buttkicker models including Buttkicker ™ Gamer 2, Pearl ™ THMP1, ButtKicker ™ Simulation Kit, Mini LFE
  • Assembly tools and screws provided.
  • Weight: 3kg (6.6 lbs)
  • Assembly instruction, tools and fasteners provided

NEW! SIMUCUBE1, SIMUCUBE2 Sport / Pro / Ultimate, Mige mount

  • Easy Installation. Direct bolt-on
  • Available in Black powder coat paint
  • Made of laser cut carbon steel
  • Ultra Durable mount
  • Compatible with SIMUCUBE1, SIMUCUBE2 Sport / Pro / Ultimate, VRS DirectForce Pro, Mige motor and more..
  • Weight: 3kg (6.6 lbs)
  • Assembly instruction, tools and fasteners provided.

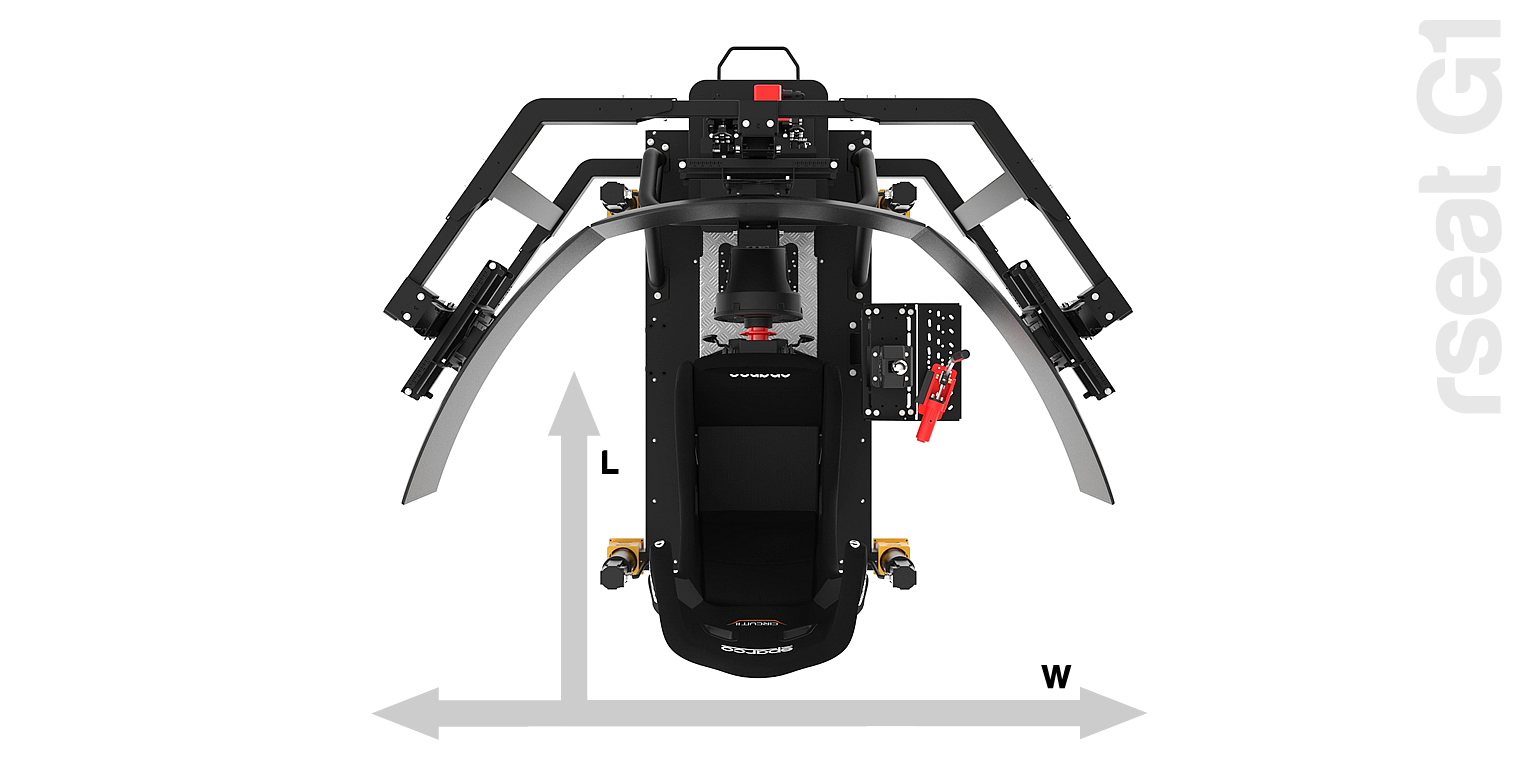

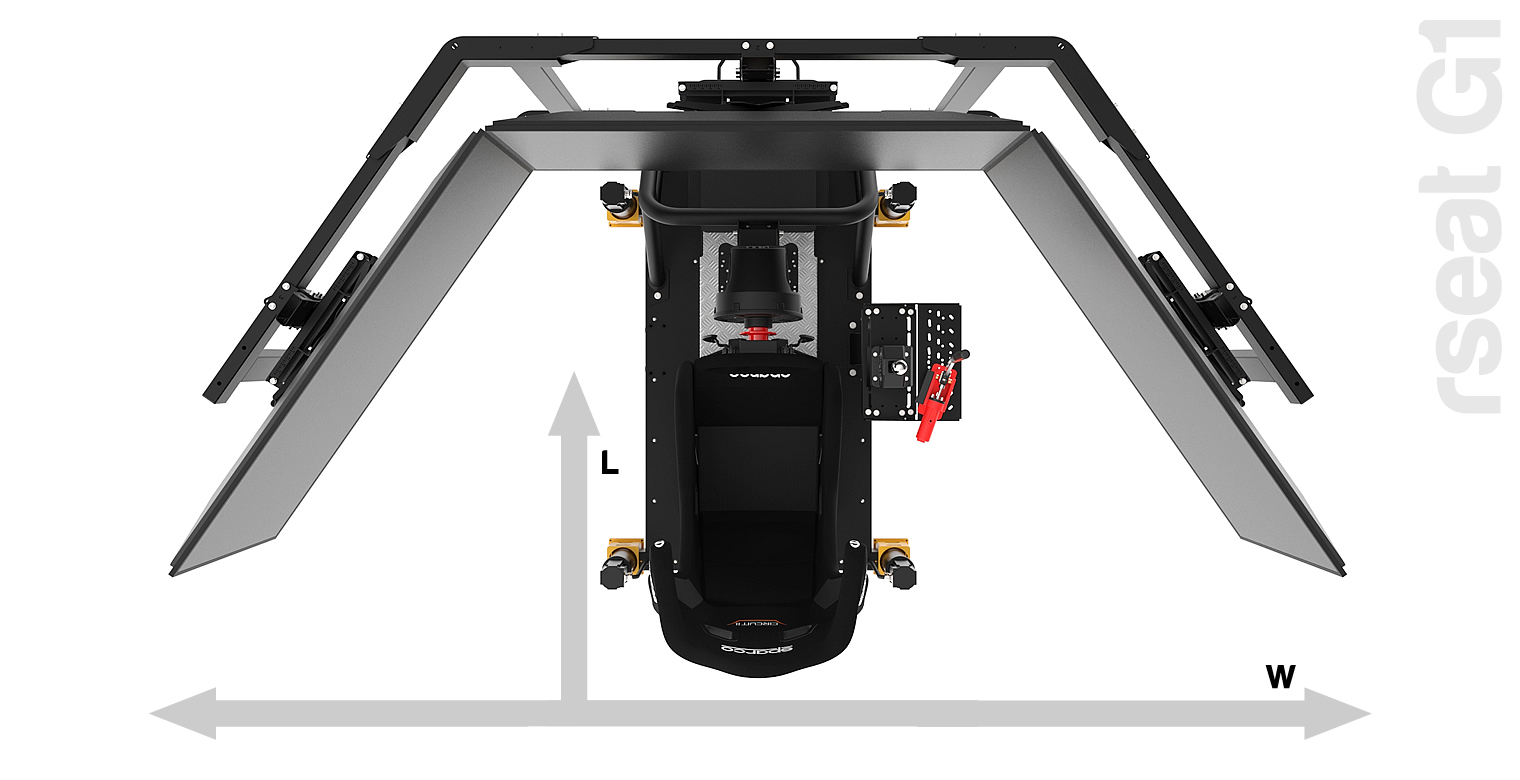

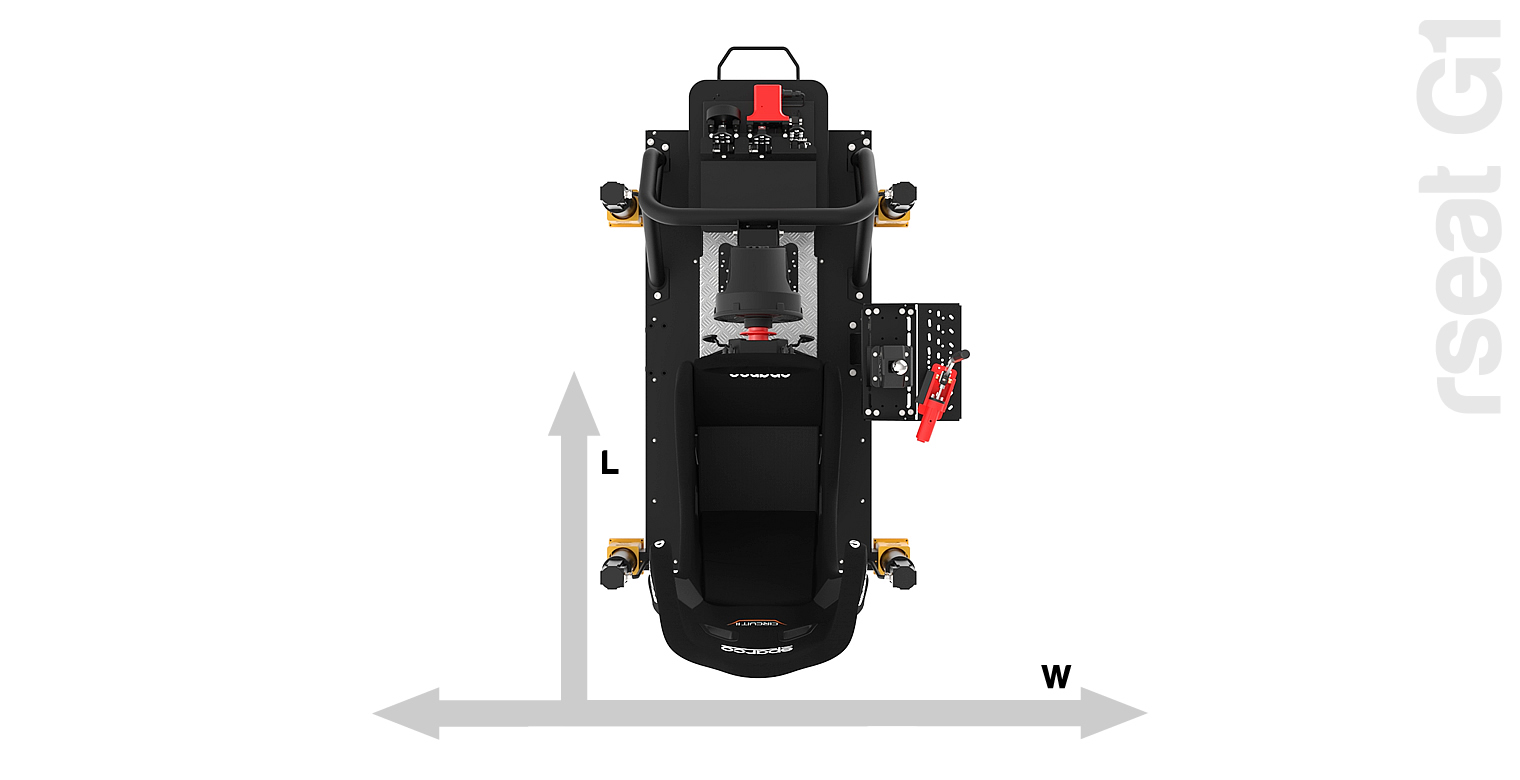

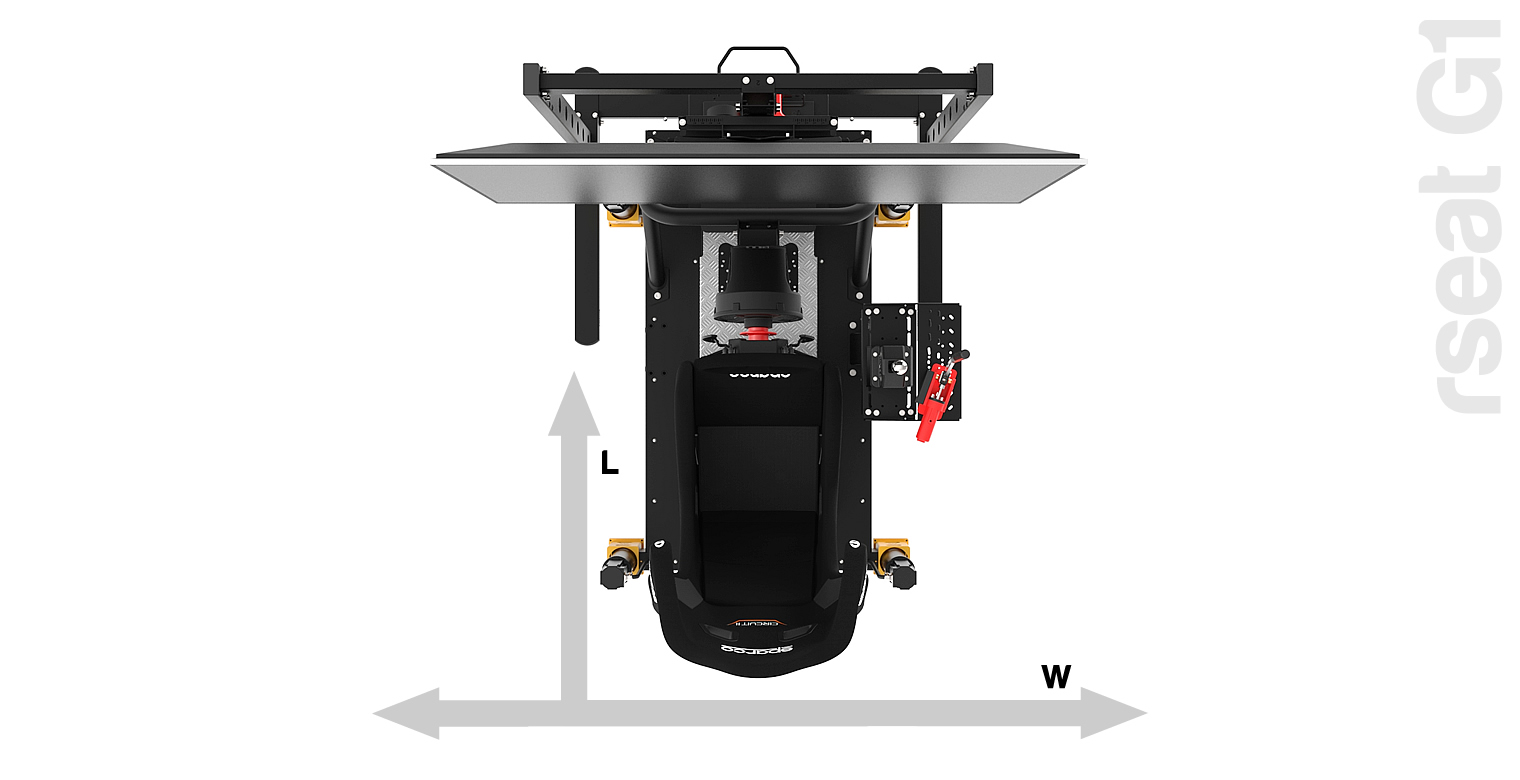

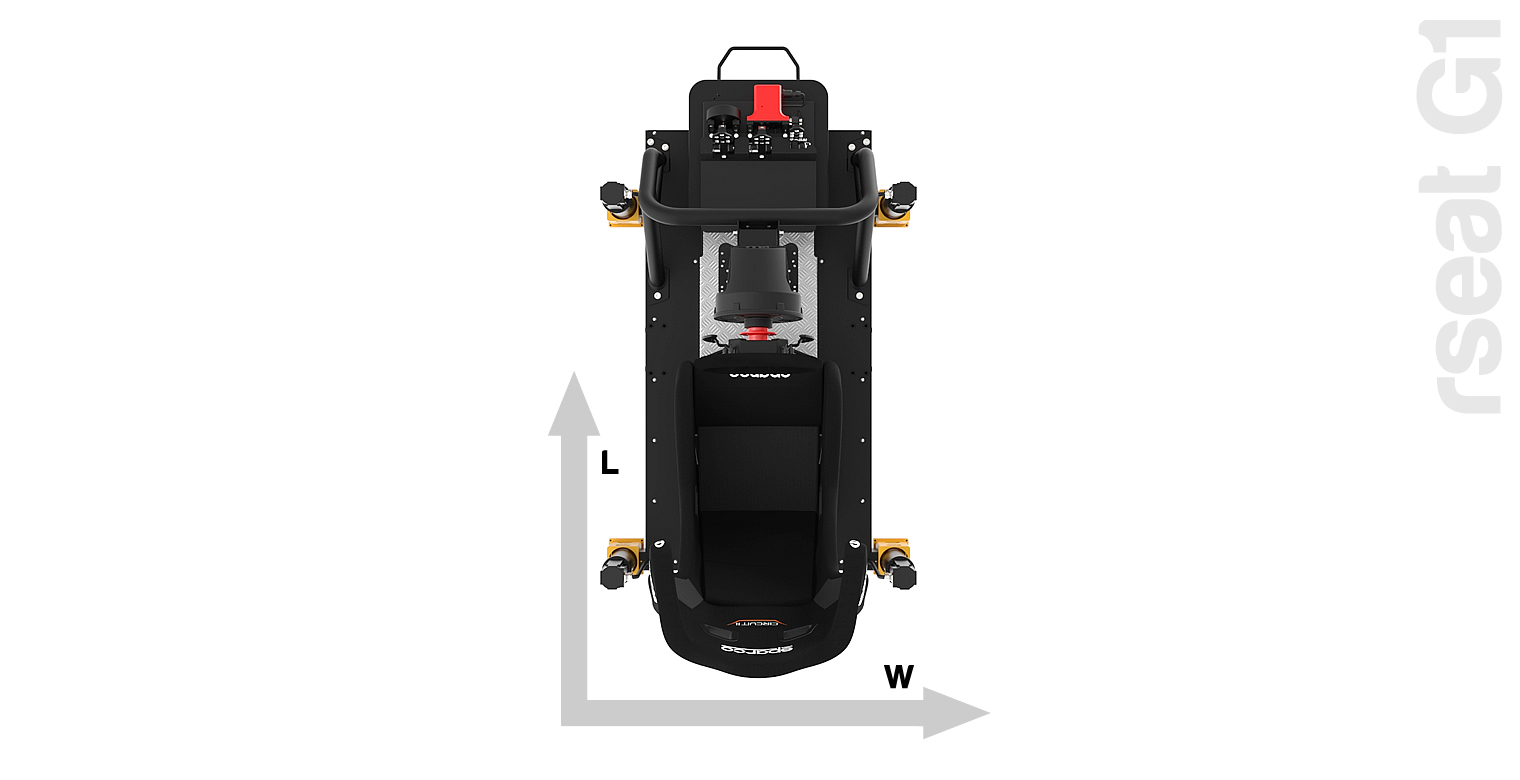

Dimensions :

Recommended space to install the G1 depending on the setup :

1. G1 6000 :
L : 1780mm/70inch W : 900mm/35.4inch


2. G1 6000 with shifter/handbrake upgrade kit:
L : 1780mm/70inch W :1200mm/47.2inch


3. G1 6000 with all accessories and RS Stand SX90 :
L : 1780mm/70inch W :2000mm/78.7inch


4. G1 6000 with all accessories and RS Stand TX40 :
L : 1780mm/70inch W : Min 2000mm/78.7inch Max 2200mm/96.6inch


5. G1 6000 with all accessories and RS Stand TX60 :
L : 1780mm/70inch W : Min 2500mm/98.4inch Max 3100mm/122inch


6. G1 6000 with all accessories and RS Stand TX90 :
L : 1780mm/70inch W : Min 3350mm/132inch Max 4500mm/177inch


WHEELS

PEDALS

SHIFTERS - HANDBRAKES

FLIGHT STICKS AND OTHERS

  • Fanatec Podium DD1
  • Fanatec Podium DD2
  • Fanatec ClubSport  (all models)
  • Fanatec CSL (all models)
  • Fanatec (all other models)
  • Thrustmaster (all models)
  • Logitech (all models)
  • Simucube 2 Sport, 2 Pro, 2 Ultimate
  • OSW Mige Motor
  • SimSteering 2
  • RWHEEL

  • Fanatec ClubSport Pedals V1/V2/V3, V3i
  • Fanatec CSL Elite Pedals
  • Fanatec (all other models)
  • Thrustmaster T-LCM Pedals
  • Thrustmaster T3PA Pedals
  • Thrustmaster (all other models)
  • Heusinkveld Sim Pedals Pro
  • Heusinkveld Sim Pedals Ultimate
  • Heusinkveld Sim Pedals Sprint
  • Logitech (all models)
  • RWHEEL Pedals

  • Fanatec ClubSport Shifter
  • Fanatec ClubSport Handbrake
  • Thrustmaster TH8RS
  • Thrustmaster TH8A
  • Thrustmaster TSS Handbrake Sparco
  • Thrustmaster TSS Shifter Sparco
  • Heusinkveld Sim Shifter
  • Heusinkveld Sim Handbrake
  • DSD Pro Sequential Shifter 2015
  • RWHEEL Handbrake
  • RWHEEL Shifter

  • Thrustmaster HOTAS Warthog Dual Throttles
  • Thrustmaster HOTAS Warthog Flight Stick
  • Thrustmaster TCA Sidestick Airbus Edition
  • Thrustmaster TCA Quadrant Airbus Edition
  • Thrustmaster T.16000M FCS
  • Thrustmaster TPR Rudder Pedals
  • Thrustmaster TWCS Throttle
  • Tablet up to 10.3 inch
  • Buttonbox up to 210 mm height
  • Keyboard/Mouse tray 710x195mm
  • Chassis monitor stand up to 49 inch 32:9
  • The Buttkicker (all models)

THE LEADERS IN HAPTIC FEEDBACK

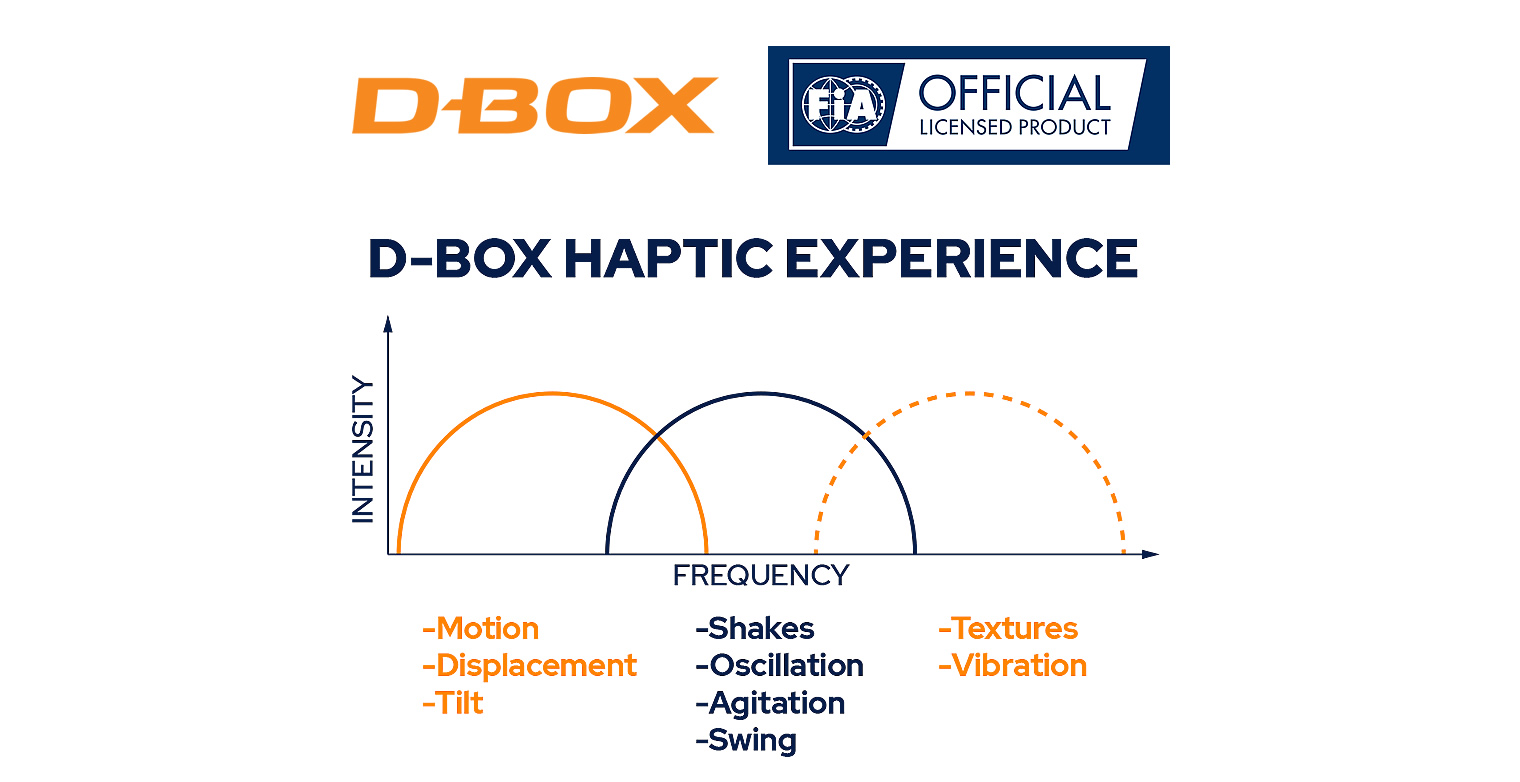

D-BOX redefines and creates realistic, immersive and haptic entertainment experiences by providing feedback to the whole body. Haptic essentially allows to feel sensations that would be felt if the body was interacting directly with physical objects. D-BOX has collaborated with some of the best companies in the world to deliver new ways to enhance great stories. Whether it’s movies, video games, virtual reality applications, themed entertainment or professional simulation, D-BOX creates a feeling of presence that makes life resonate like never before. They are what bring haptic feedback to our simulation experience and enable it to reach a new level.

RSEAT g1-1500

RSEAT AND D-BOX

D-BOX has always been a key part of our solutions. It stands as the ultimate step in completing the perfect RSEAT racing setup. Thanks to its plug and play approach, it is easy to use and easy to adjust perfectly to your liking. Thanks to an exclusive and custom made motion code, they are able to deliver an unmatched haptic feedback containing much more depth than any other system on the market currently.. RSEAT is looking to provide the best for our customers and DBOX is it. We have been working with D-BOX for 8 years and could not be happier with the quality and overall performance of their actuators.

RSEAT g1-1500

THE D-BOX HAPTIC SYSTEM

Thanks to D-BOX systems’ plug and play approach, they are easy to use and to adjust perfectly to your liking. Available in multiple configurations of 2 to 7 actuators able to perfectly replicate: pitch, roll, heave, sway, surge and yaw as well as in 3 different sizes of 1.5”, 3” and 6”, DBOX actuators have unmatched versatility. All those options allow you to create the perfect simulator for your needs from off-road driving on a Rally stage to F1 circuit racing!

RSEAT g1-1500

THE BEST HAPTIC SYSTEMS AVAILABLE BAR-NONE.

For several months, FIA engineers and numerous technical experts of the Federation reviewed D-BOX haptic systems and confirmed it to be the best haptic solution available today. D-BOX motion codes are programmed in partnership with game studios ensure that realism and responsiveness are maximised. Because they are custom built by a team of in-house professionals, no small details are left behind. D-BOX’s haptic feedback goes beyond crude movement and taps into vibrations and textures such as traction loss and cracks of the racetrack surface. These subtle cues, critical for a driver performing on a simulation rig, are what make D-BOX the only FIA licensed option available on the market today.

RSEAT g1-1500
