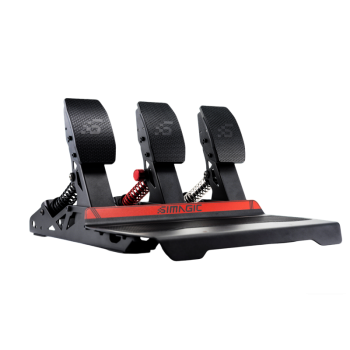

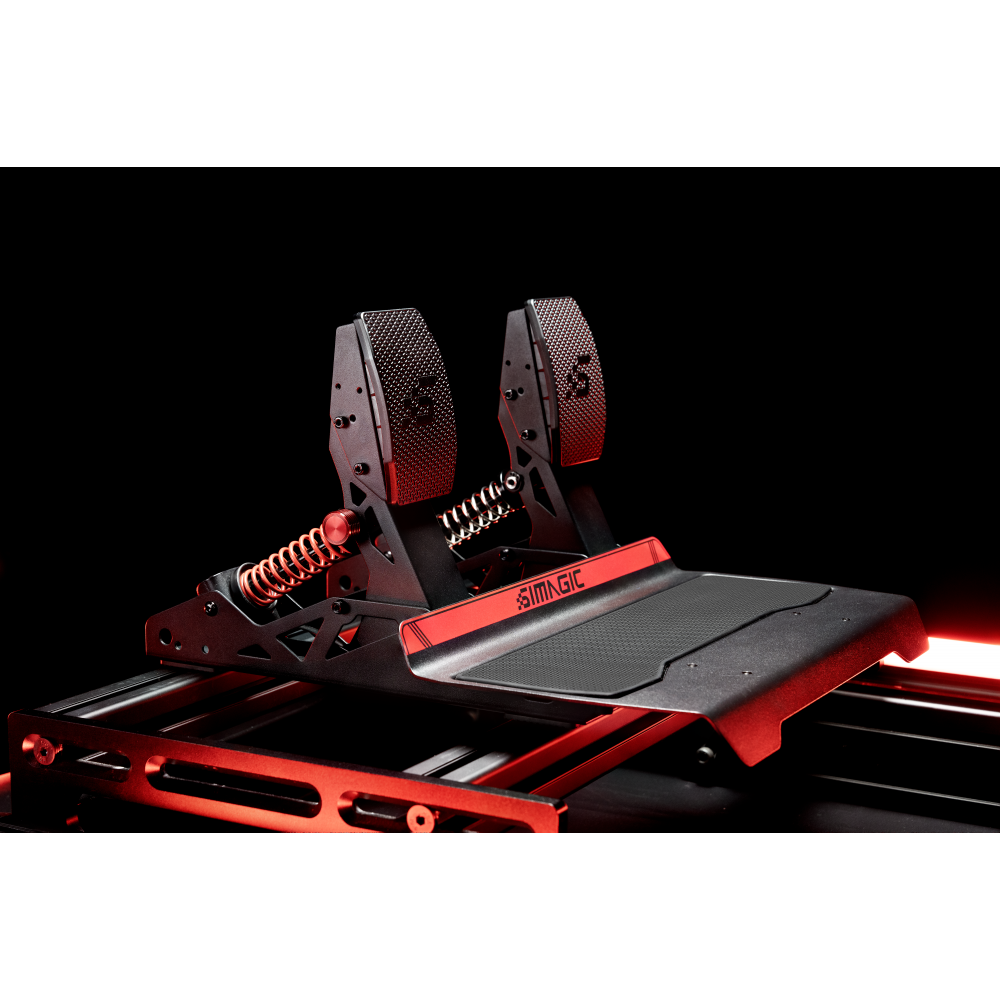

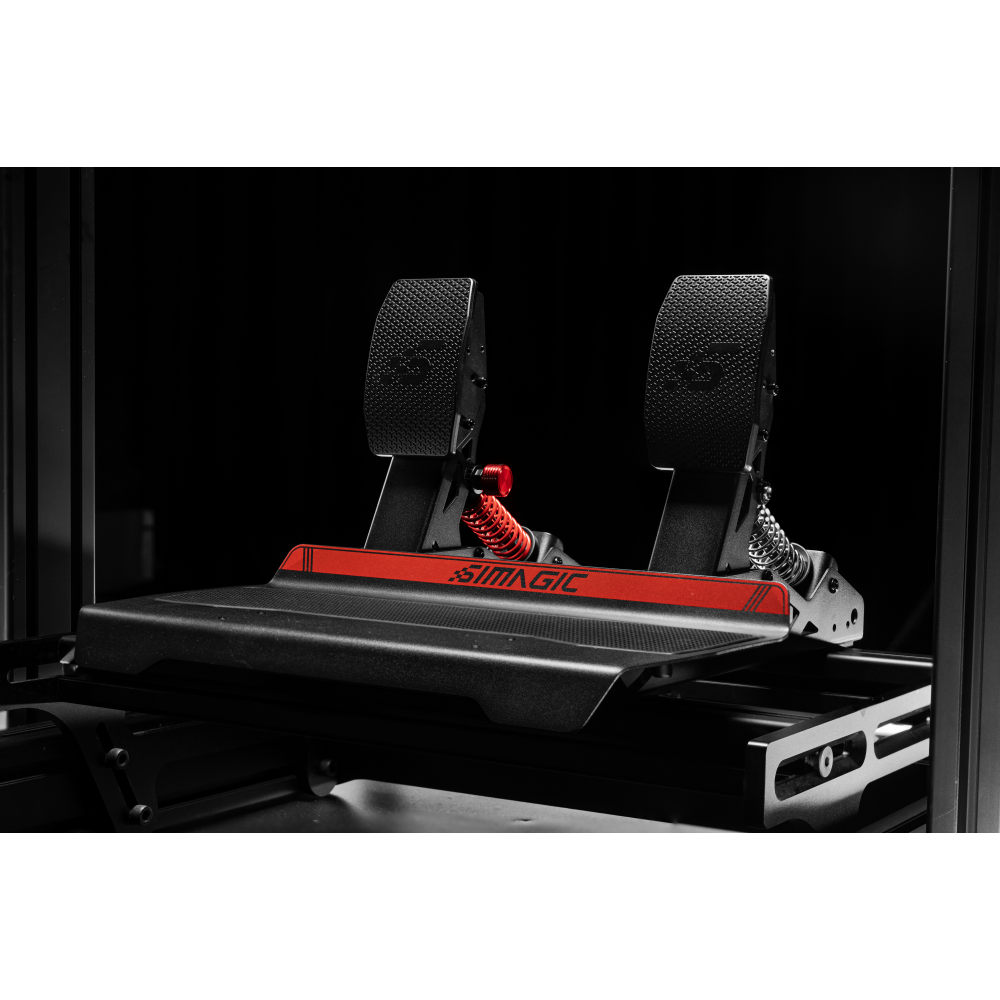

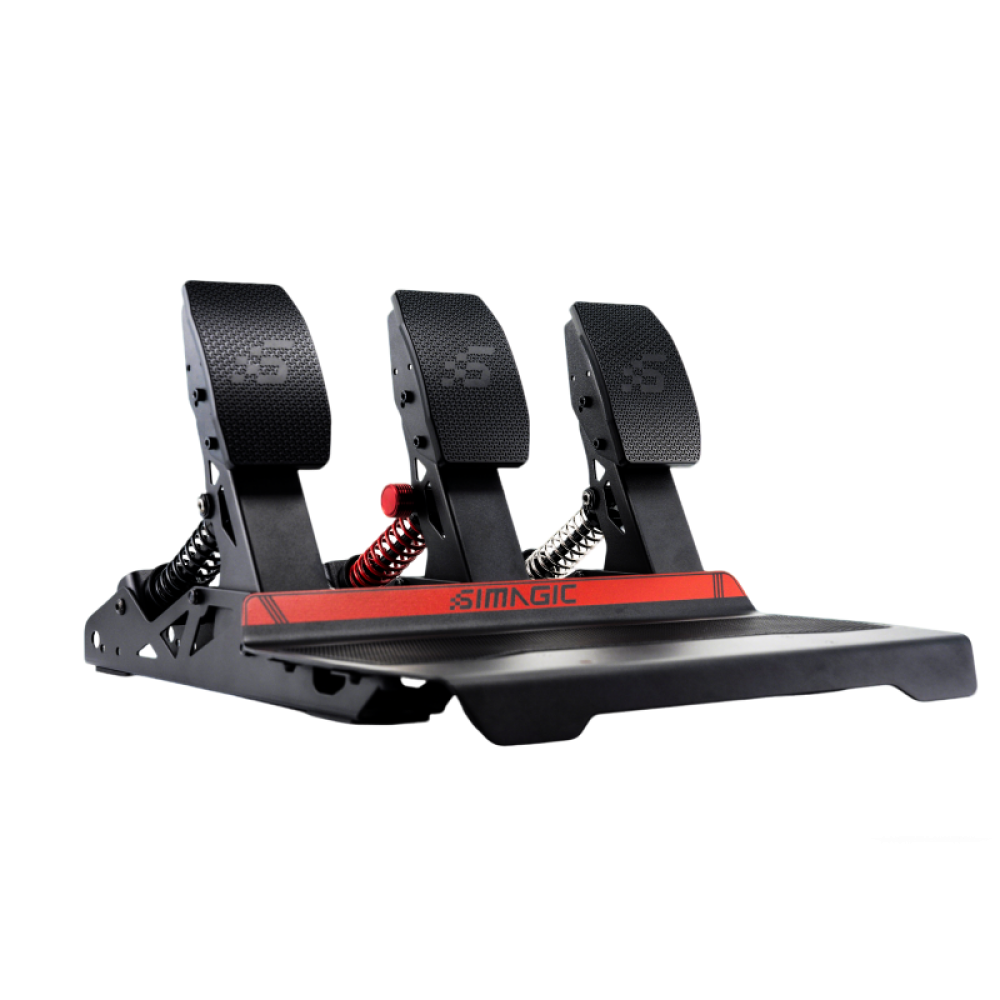

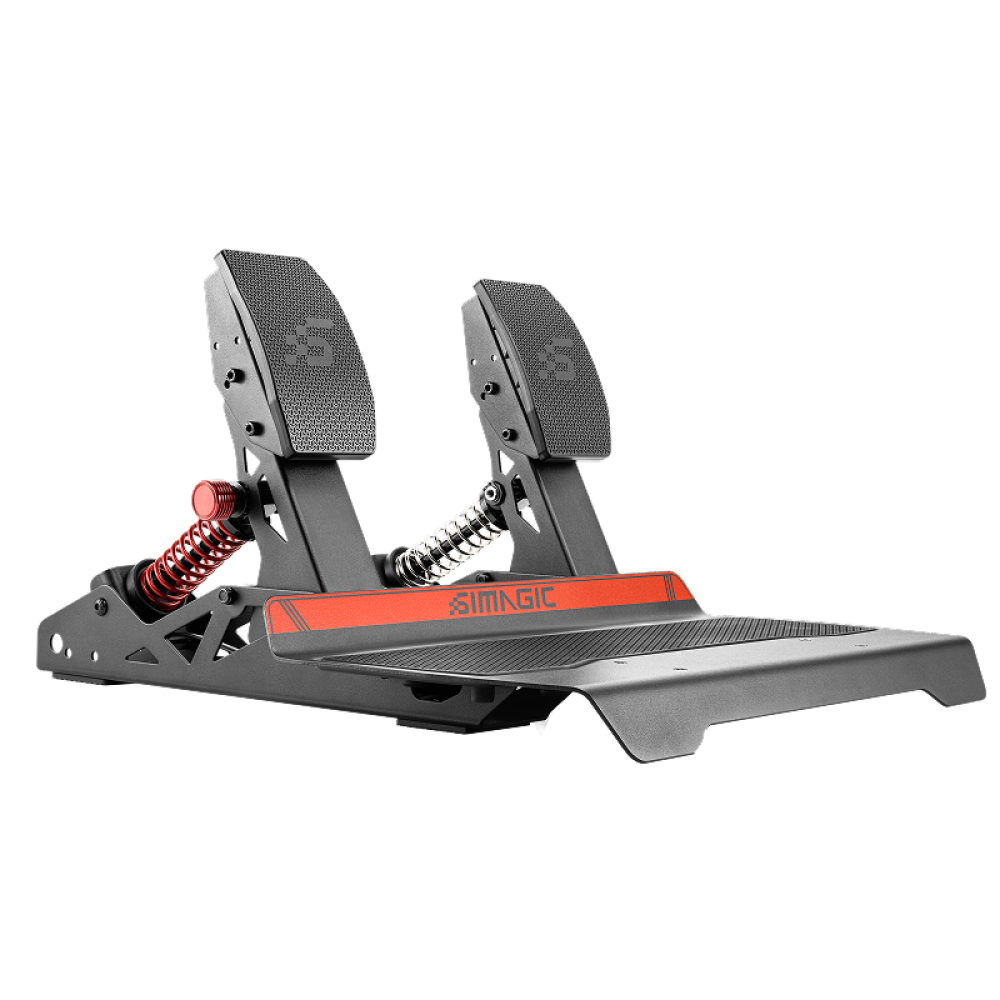

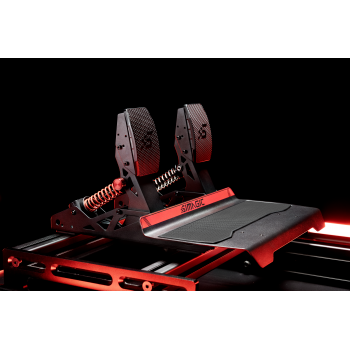

SIMAGIC P700 Pedals

SIMAGIC P700 Pedals – Loadcell Precision and Advanced Adjustability

The SIMAGIC P700 is a high-precision sim racing pedal set designed to deliver total control and realistic feedback. Featuring a loadcell braking system, CNC-machined aluminum construction, and extensive mechanical adjustability, it is built for demanding drivers seeking performance and consistency.

Available in a 2-pedal configuration (brake + throttle) with the option to upgrade to a 3-pedal setup via an optional clutch, the P700 adapts to all racing disciplines: GT, circuit, drift, and rally.

Key Technical Features

• High-precision loadcell brake: pressure-based input for realistic and consistent braking.
• Adjustable brake curve: customize feel (linear or progressive).
• Adjustable resistance: tune stiffness using springs and elastomers.
• Contactless sensors: long-lasting accuracy with no mechanical wear.
• 100% CNC aluminum construction: maximum rigidity with zero flex under load.
• Silicone heel rest: enhanced comfort and stability.
• HPR compatible: Simagic plug & play haptic modules support.
• Modular design: upgradeable to 3 pedals with optional clutch.

Loadcell System

The P700 brake is based on a 150kg loadcell sensor, measuring applied force rather than pedal position. This design closely replicates the behavior of a real-world braking system.

• Force-based braking instead of travel-based
• Improved consistency and repeatability
• Ideal for trail braking and precision driving

Advanced Adjustability

The SIMAGIC P700 offers a wide range of mechanical adjustments to perfectly match your driving style.

• Adjustable pedal angle
• Adjustable horizontal position and spacing
• Configurable pedal travel
• Customizable brake stiffness with 35 adjustment options (springs / elastomers)
• Throttle response adjustment

High-Precision Throttle

The throttle pedal features a contactless sensor ensuring smooth and accurate input. Its progressive travel allows optimal traction control, especially on corner exit.

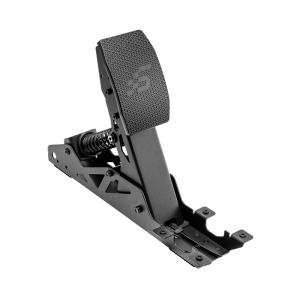

Optional Clutch Pedal

The optional clutch kit adds a third pedal with a simulated bite point, ideal for standing starts and manual transmission driving.

Software & Telemetry

• Response curve adjustment (brake / throttle)
• Precise pedal calibration
• Adaptation to different driving styles

Compatibility & Installation

• USB PC connection
• SimPro V3 compatible
• Compatible with major sim racing titles (iRacing, ACC, rFactor 2…)
• Mounts on aluminum profile and steel cockpits

Why Choose the SIMAGIC P700?

The P700 combines loadcell technology, advanced adjustability, and premium construction to deliver a precise, upgradeable, and durable pedal set. It is an excellent foundation for improving in sim racing while maintaining competitive-level performance.
